OPX33 Swing Reach Very Narrow Aisle Turret Truck

Overview

The OPX33 Swing Reach is a Very Narrow Aisle (VNA) turret truck - the most specialized class of warehouse truck, engineered for facilities running 67-inch (1.7 m) aisles. 3,300 lb capacity, lift heights up to 511 inches (42.6 feet), turns within its own footprint and swings the forks 90 degrees left or right to stack rack on either side of the aisle without rotating the chassis.

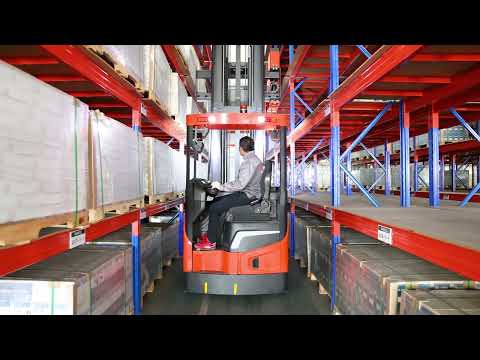

What Makes a Turret Truck Different

A standard reach truck rotates in the aisle to position forks toward the rack. A VNA turret truck stays straight and swings (turrets) the forks 90 degrees instead, requiring only enough aisle width for the chassis itself plus clearance. Storage density gain vs. counterbalanced forklift: +60-80%. A VNA conversion typically pays back the truck cost in 18-36 months purely through storage density gains.

Priced Variants

• OPX33-256 - 256" lift, 129.1" LMH, 13,068 lb

• OPX33-295 - 295" lift, 142.5" LMH, 13,332 lb

• OPX33-335 - 335" lift, 155.5" LMH, 13,596 lb

• OPX33-374 - 374" lift, 168.5" LMH, 13,860 lb

Extended High-Reach Variants

• OPX33-394 - 394" lift, 175" LMH

• OPX33-413 - 413" lift, 182" LMH

• OPX33-511 - 511" lift, 214" LMH

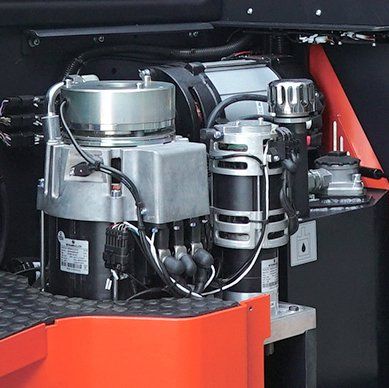

German-Engineered Drivetrain

• German ZF GK30 sealed gearbox

• Schabmueller AC drive motor

• Schabmueller Electric Power Steering

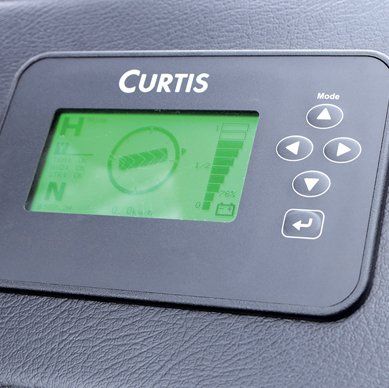

• Curtis Intelligent Computer Control with discharge indicator and fault codes

• 48V fully AC drive with regenerative braking

Battery & Optional Lithium

Standard 48V/900Ah lead-acid battery with side-extraction tray for quick swap during 24/7 operation. 48V/120A 208-240V or 480V 3-Phase charger. Optional lithium upgrade replaces both: 48V/600Ah Lithium + 48V/200Ah charger (+$11,000) - eliminates watering, equalization, and side-extraction tray infrastructure, with a separate 5-Year Limited Warranty.

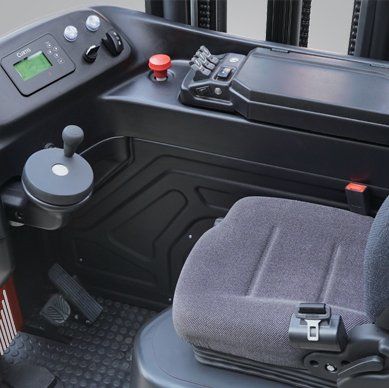

Camera & Operator Equipment

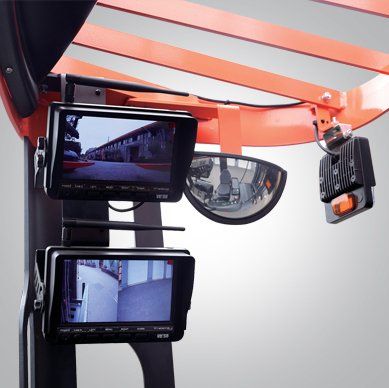

• Dual screen, three-camera wireless monitoring standard - left fork, right fork, rack-face approach

• Fork traverse and rotation device - keeps forks within aisle profile during swing

• Side roller guide - lateral stability at extreme heights

• Suspension seat for long-shift comfort

• Adjustable elbow pad

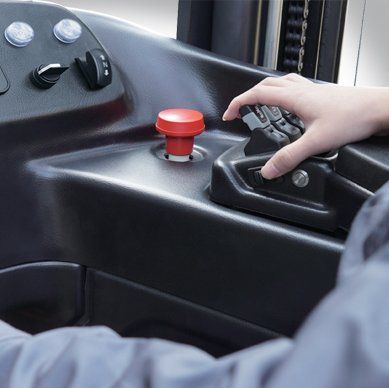

• Elobau fingertip control proportional lift

Performance

Travel speed: 5.28 mph unloaded / 5 mph loaded. 15.7" x 6" polyurethane drive tire (oversized for chassis weight). 13" x 7" polyurethane load wheels (50% wider than RT45PRO load wheels for stability under load at extended reach).

Optional Upgrades

• Lithium Battery 600Ah + 48V/200Ah Charger (replaces standard) - +$11,000

• Fork Length 48" - +$100

• Fork Length 54" - +$120

• Fork Length 60" - +$300

• Preheight Selection System - +$3,200

• Magnetic Guide - +$7,500

• Wire Guide - +$8,200

• Wire Guide with Line Driver - +$10,900

• Magnetic Strips or Wire - $5/ft (quoted by length)

Important Tariff Notice

Per current Noblelift North America dealer pricing: steel surcharges may apply on all new factory orders. Verify rates and other tariff information at nobleliftna.com/tariff before final purchase. Pricing on this page is the dealer-net base MSRP and does not include steel surcharge.

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The optional lithium battery carries a separate 5-Year Limited Warranty. VNA turret trucks typically require a site survey before purchase to verify aisle dimensions, floor flatness, and rack compatibility - PHS Lift offers complimentary site surveys for qualified prospects.
