RT35PRO Sit-Down Moving-Mast Reach Stacker

Overview

The RT35PRO Series Electric Reach Stacker is Noblelift professional sit-down moving-mast reach stacker - a class above the stand-up RT-series for operations that demand 48V higher voltage, heavier-duty drivetrain, and seated-operator ergonomics. 3,500 lb capacity, lift heights up to 374 inches (31 feet).

Sit-Down vs. Stand-Up

The RT35PRO is a sit-down reach stacker - operator is seated for the entire shift rather than standing on a suspension floorboard. Less operator fatigue on long shifts, higher absolute productivity per hour over 8-12 hour shifts. The right choice for dedicated reach-truck operators running full multi-shift schedules.

Moving-Mast Design

Instead of the forks extending laterally on a scissor mechanism, the entire mast slides forward on rails to position the forks into the rack. Higher load capacity at full reach, better stability with heavy loads at extreme heights, more compact retracted footprint.

Model Variants (3-Stage)

• RT35PRO-177 - 177" lift, 88" LMH, 8,162 lb, $40,100

• RT35PRO-216 - 216" lift, 101" LMH, 8,272 lb, $40,700

• RT35PRO-256 - 256" lift, 114" LMH, 8,382 lb, $41,300

• RT35PRO-295 - 295" lift, 127" LMH, 8,492 lb, $41,900

• RT35PRO-335 - 335" lift, 140" LMH, 8,602 lb, $43,100

• RT35PRO-374 - 374" lift, 154" LMH, 8,712 lb, $45,200

German-Engineered Drivetrain

• German Schabmueller AC drive motor

• German ZF GK25 sealed gearbox - lifetime lubrication

• Curtis Intelligent Computer Control with self-diagnostics

• 48V fully AC drive with regenerative braking

Battery & Optional Lithium

Standard 48V/420Ah industrial lead-acid battery with 48V/65A 208-240V or 480V 3-Phase charger. Optional lithium upgrade replaces both: 48V/400Ah Lithium + matching charger (+$9,500), eliminating watering and equalization, supporting opportunity charging, with a separate 5-Year Limited Warranty.

Wireless Camera & Operator Ergonomics

• Wireless 2.4 GHz camera with IP69 rating - full water/dust protection

• Adjustable elbow pad - operator-customizable

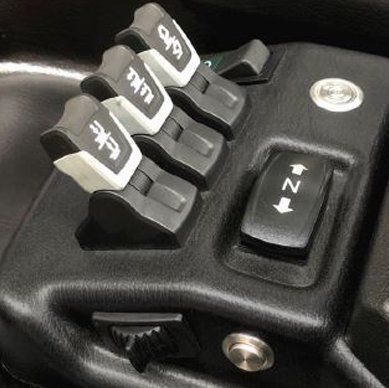

• Fingertip control proportional lift for precise pallet placement

• Integrated side shifter standard

• Electric Power Steering standard

Performance & Safety

• Travel speed: 6.8 mph unloaded / 6.3 mph loaded - fastest in the reach-truck line

• Speed reduction for mast reaching and retraction

• Load wheel integrated with hydraulic brake

Optional Upgrades

• Lithium Battery 48V/400Ah + Charger (replaces standard) - +$9,500

• Height Pre-Selection System - +$2,100

• Fork Length 54" - +$120

• Fork Length 60" - +$175

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The optional lithium battery carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
