HERO Lithium-Ion Electric Task Support Vehicle

Overview

The HERO Lithium-Ion Electric Task Support Vehicle is Noblelift flagship multi-mode-steering electric work platform - 700 lb capacity, 180" platform height, 252" max work height, four steering modes including true 360° rotation, PMSM drive motor, 24V/150Ah lithium battery. 3-Year Limited Warranty.

What is a Task Support Vehicle?

The HERO is not a forklift and not a conventional order picker - it is a hybrid operator-elevated work platform with utility decks. Replaces multiple single-purpose machines (ladder + cart + tow tractor + work platform) with one configurable vehicle.

Specifications

• Total Capacity: 700 lb (200 front + 200 back + 300 operator)

• Towing Capacity: 2,600 lb (with optional hitch)

• Platform Height: 180 in (15 ft)

• Maximum Work Height: 252 in (21 ft)

• Mast Stages: 3 (telescoping)

• Ship Weight: 3,025 lb

• MSRP: $21,200

Four Steering Modes — Ultimate Maneuverability

• Front-Wheel Steering (Normal Front) - conventional forklift-style

• Rear-Wheel Steering (Normal Rear) - back-into-position parking

• Side Steering (Cloud Walking) - sideways translation without rotation

• Zero Point Turning (True 360° Rotation) - spin in place, no shunt-and-back

PMSM Drive Motor — Maintenance-Free

• Higher efficiency than AC induction (~92-95% vs ~85-88%)

• Maintenance-free - no brushes to replace

• Quieter operation - important in retail environments

• Smoother low-speed control - critical for delicate stock work

Lithium-Ion Battery & Charger

24V/150Ah Lithium-Ion battery with built-in 24V/30A charger. Plug into any standard 110V outlet, no special facility wiring required. ~5 hours full charge, supports opportunity charging during breaks. No maintenance, no watering, no off-gassing.

Telescopic Load Tray

Front load tray telescopes from 13.6" to 20.7" - smaller footprint for narrow-aisle work or larger surface for multi-item moves. Unique HERO feature.

Smart Access & Operator Controls

• Keyless PIN Code Access with RFID Card Support

• CAN-Bus Control System

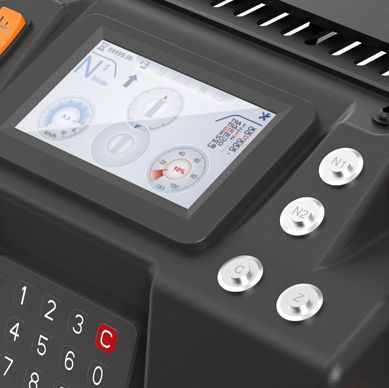

• LCD Display - speed/steering mode/usage time/power/direction/fault codes

• Dual-Hand Sensing Operation

• Soft Lift/Lower Stop

• Gate Interlocks

Built-in Power Outlets

On-board USB connector and 12V DC socket - plug in scanners, label printers, mobile devices, work lights, battery-powered tools. Converts the HERO into a mobile workstation.

Safety & PPE

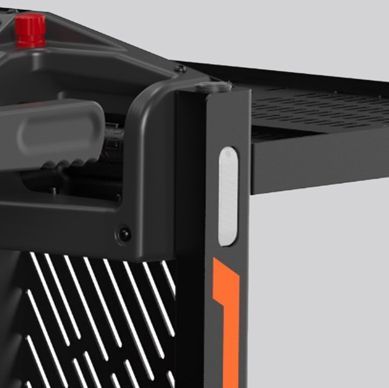

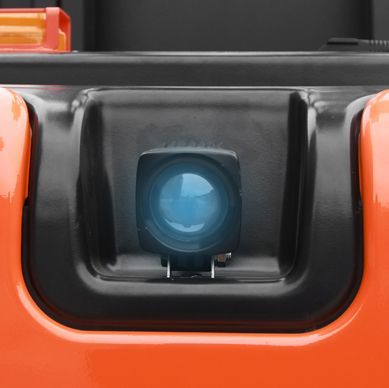

• LED Side Lights + Blue Pedestrian Light + Flashing Beacon

• Soft Lift/Lower Stop

• Gate Interlocks

• PPE Fall Restraint Connection Point - OSHA-compliant fall-arrest anchor

Additional Options

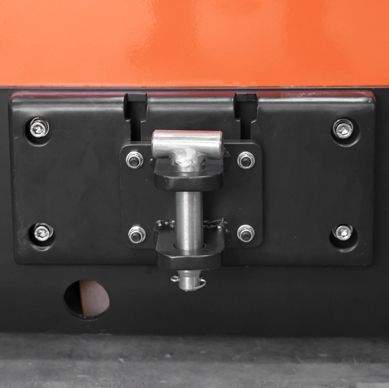

• Tow Hitch (S, P, or LKE Coupling) +$300 - unlocks 2,600 lb towing capacity

• Side Hooks for Long Materials - CALL for quote (lumber, conduit, profile material)

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
