RT45PRO Sit-Down Moving-Mast Reach Stacker

Overview

The RT45PRO Lithium Electric Reach Stacker is the 4,500 lb capacity flagship of Noblelift professional reach-stacker line - the heavy-capacity sister to the RT35PRO. Built on the same premium 48V chassis with extended high-bay capability up to 492 inches (41 feet) of lift.

Heavy-Capacity Moving-Mast Architecture

The defining structural difference vs. the RT35PRO is the upgraded fork width (4.7" vs 3.9"), larger load wheels (13" vs 11.2"), and 33% larger industrial battery (48V/560Ah vs 420Ah) required to safely carry 4,500 lb pallets at full reach and extended lift heights up to 492 inches.

Model Variants (3-Stage)

• RT45PRO-177 - 177" lift, 88" LMH, 8,734 lb

• RT45PRO-216 - 216" lift, 101" LMH, 8,844 lb

• RT45PRO-256 - 256" lift, 114" LMH, 8,954 lb

• RT45PRO-295 - 295" lift, 127" LMH, 9,064 lb

• RT45PRO-335 - 335" lift, 140" LMH, 9,174 lb

• RT45PRO-374 - 374" lift, 154" LMH, 9,284 lb

• RT45PRO-413 - 413" lift, 167" LMH

• RT45PRO-453 - 453" lift, 180" LMH

• RT45PRO-492 - 492" lift, 193" LMH

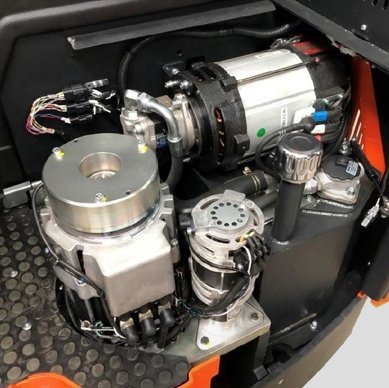

German-Engineered Drivetrain

• German Schabmueller AC drive motor

• German ZF GK25 sealed gearbox

• Curtis Intelligent Computer Control with self-diagnostics

• Curtis battery discharge indicator with hour meter

• 48V fully AC drive with regenerative braking

Battery & Optional Lithium

Standard 48V/560Ah industrial lead-acid battery (33% larger than RT35PRO) with 48V/80A 208-220V or 480V 3-Phase charger. Optional lithium upgrade replaces both: 48V/400Ah Lithium + matching charger (+$9,500), eliminating watering and equalization, supporting opportunity charging, with a separate 5-Year Limited Warranty.

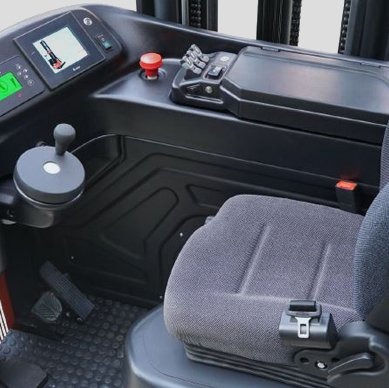

Wireless Camera & Operator Ergonomics

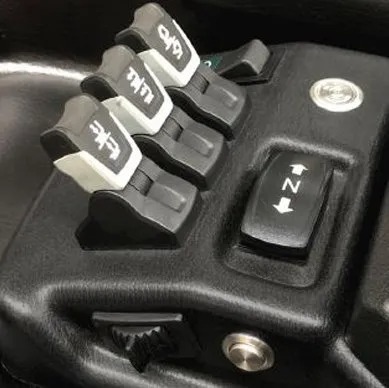

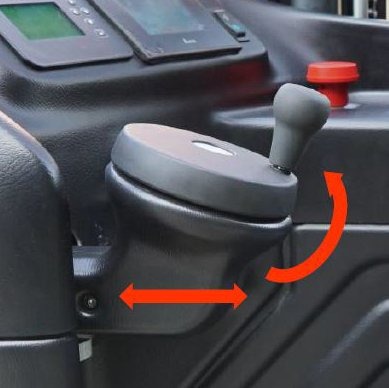

Wireless 2.4 GHz camera with IP69 rating - full water/dust protection. At 492" of lift, the camera is mandatory equipment. Adjustable elbow pad, fingertip control proportional lift, integrated side shifter, electric power steering all standard.

Performance & Safety

• Travel speed: 6.8 mph unloaded / 6.3 mph loaded

• Speed reduction for mast reaching and retraction

• Load wheel integrated with hydraulic brake

• 13" x 4.3" polyurethane load wheels (upgraded from 11.2" on RT35PRO)

Optional Upgrades

• Lithium Battery 48V/400Ah + Charger (replaces standard) - +$9,500

• Height Pre-Selection System - +$2,100

• Fork Length 54" - +$120

• Fork Length 60" - +$175

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The optional lithium battery carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
