OP8.5Li Electric Order Picker — Ladder Alternative

Overview

The OP8.5Li Electric Order Picker is Noblelift purpose-built alternative to conventional warehouse ladders. 850 lb total capacity, 130" lift height, 3-stage telescoping mast, 24V/80Ah lithium battery standard. 3-Year Limited Warranty.

Perfect Alternative to Workplace Ladders

• Powered platform with guard rails - no ladder-balance failures

• Travel speed up to 3.8 mph - picks 5-10× faster than ladder workflow

• Multi-bin picking in one cycle - no climb-down-and-reposition

• Dual-hands sensing operation prevents accidental travel

Specifications

• Total Capacity: 850 lb (220 tray + 330 deck + 300 operator)

• Lift Height: 130 in (10.8 ft)

• Lowered Height: 57.2 in

• Mast Stages: 3 (telescoping)

• Ship Weight: 1,496 lb

• MSRP: $15,900

Curtis Drivetrain & Smart Handle Controls

• Curtis Travel Controller with CAN-bus Control

• High-Performance AC Drive Motor + DC Lifting Motor

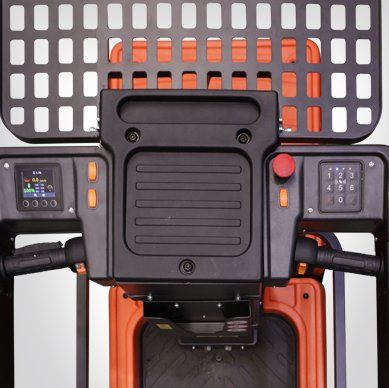

• Smart Handle with Keyless Pin-Code Panel + RFID Card - multi-user access control

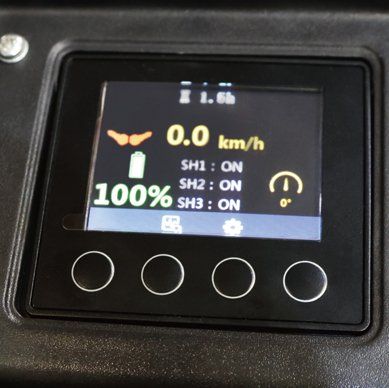

• LCD Display - speed / usage time / power / steering / fault code / alarm

• Dual-Hands Sensing Operation

• Standard Electric Power Steering (EPS)

Battery & Charger Options

Lithium Standard: 24V/80Ah with built-in 24V/25A charger - fast opportunity charging on any standard 110V outlet. Lead-Acid Option: 24V/106Ah with built-in 24V/15A charger. Both batteries include built-in chargers - no external charging station required.

Travel Speed by Lift Height

Travel speed reduces dynamically as lift height increases for safety: 3.8 mph at 0-19.6", 2.0 mph at 19.6-59", 0.8 mph at 59-130".

Loading Capacity Breakdown

• 220 lb Front Load Tray

• 330 lb Front Load Deck

• 300 lb Operator Compartment

Safety & Compliance

• Safety Warning Lights visible from all sides

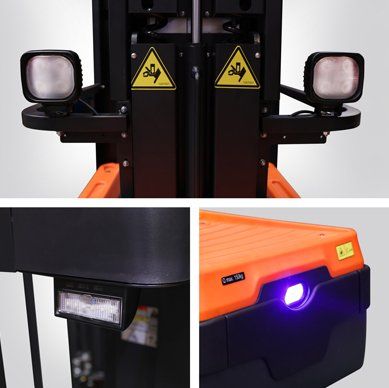

• LED Work Lights + Blue Lights + Buzzer

• Emergency Lowering Switch from Chassis - ground-level recovery

• Dual-Hands Sensing Operation

• Smart Handle Keyless Access

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
