RT33SP Lithium Single-Scissor Pantograph Reach Truck

Overview

The RT33SP Series Lithium Electric Reach Stacker is a premium single-scissor stand-up pantograph reach truck for narrow-aisle high-rack warehouses where deep-rack access at heights up to 413 inches (34.4 feet) is required. With 3,300 lb capacity, German-engineered drivetrain throughout, lithium power, and operator camera height assistance.

Single-Scissor Pantograph

High-precision lateral fork extension - capable of accessing the second pallet position in selective rack and the back-of-rack in deep-lane configurations. Single-scissor design provides faster cycle time, tighter turning radius, and lower maintenance vs. double-scissor.

Model Variants (3-Stage)

• RT33SP-177 - 177" lift, 89" LMH, 8,091 lb

• RT33SP-193 - 193" lift, 95.1" LMH, 8,179 lb

• RT33SP-256 - 256" lift, 115.7" LMH, 8,620 lb

• RT33SP-295 - 295" lift, 128.9" LMH, 8,856 lb

• RT33SP-334 - 334" lift, 142" LMH, 9,077 lb

• RT33SP-374 - 374" lift, 155.1" LMH, 9,319 lb

• RT33SP-413 - 413" lift, 168.3" LMH, 9,808 lb

German-Engineered Drivetrain

• German Schabmueller AC drive motor - high-torque, sealed for industrial duty

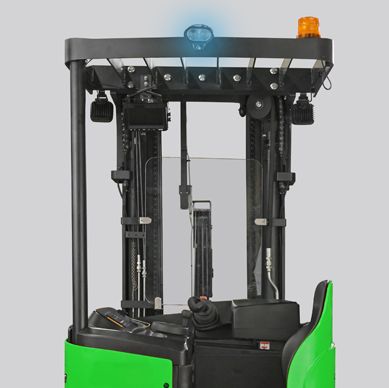

• German Hoesch Schwerter mast profile - high-bay rigidity

• German BUCHHOLZ hydraulic valve - proportional control

• Curtis Intelligent Computer Control with self-diagnostics

• 36V fully AC drive with regenerative braking

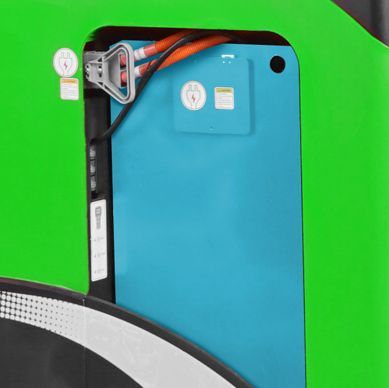

Lithium Battery & Charging

36V/560Ah industrial lithium battery with 36V/200Ah 220V charger. 3,000+ cycle life, zero maintenance, sealed BMS, no ventilation required. 5-Year Limited Warranty on Lithium Battery (vs 3-year on chassis).

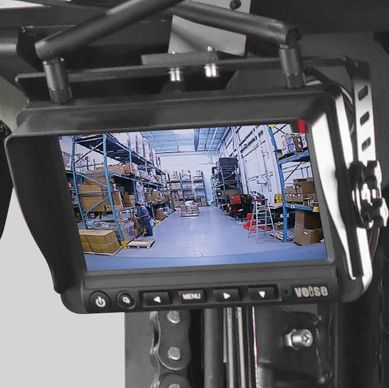

Operator Camera & Wireless Monitor

Fork-mounted camera streams real-time video of the load and rack target to the operator console. Wireless monitor eliminates mast cable runs. At 413" of lift, the operator cannot visually verify fork engagement - the camera assist is what makes high-bay reach trucks safe and productive.

Performance & Safety

• Travel speed: 5.9 mph unloaded / 5.6 mph fully loaded

• Proportional lift for accurate control of lift height

• Speed reduction while turning and for mast reaching and retraction

• Suspension Floorboard

• Electric Power Steering standard

• Integrated side shifter

Optional Upgrades

• Height Pre-Selection System - +$2,100

• Attached Fork Length 54" - +$120

• Overhead-Guard Plexi Cover - +$500

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. Lithium battery carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
