FL4C50 / FL4C65 Internal Combustion Cushion Tire LPG Forklift

Overview

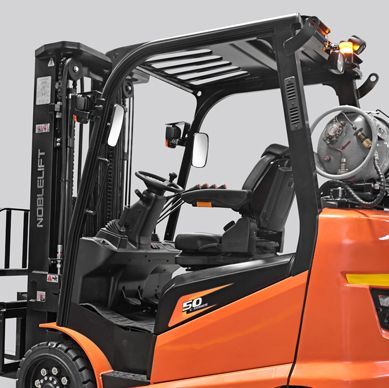

The FL4C50 / FL4C65 Internal Combustion Cushion Tire Forklift is Noblelift premium Hyundai-powered LPG cushion-tire forklift in 5,000 and 6,500 lb capacities. Hyundai HMC 2.4L T3 LPG engine, Cascade side-shift standard, 3-year limited warranty.

Internal Combustion Cushion Tire

• Hyundai HMC 2.4L T3 LPG engine - Tier 3 EPA compliant

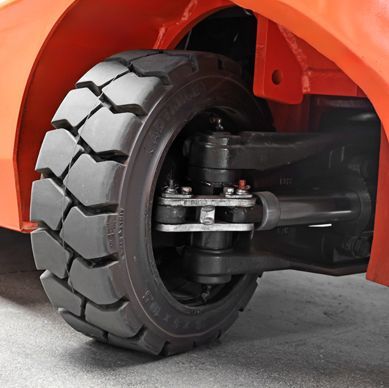

• Cushion solid rubber tires for smooth indoor concrete floors

• 4-wheel layout for maximum stability at heavy capacities

• Cascade Side-Shift standard - premium-brand attachment included

• Strong gradient performance - up to 28.9% full load

Model Variants

• FL4C50 - 5,000 lb, 8,468 lb ship weight, $31,100

• FL4C65 - 6,500 lb, 9,915 lb ship weight, $33,200

Engine & Drivetrain

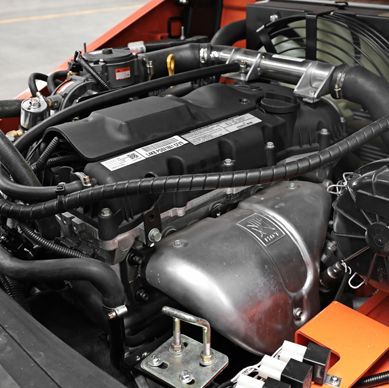

• Engine: Hyundai HMC 2.4L T3 LPG

• 4-Way Proportional Hydraulic Control Valve

• Cascade Side-Shift standard

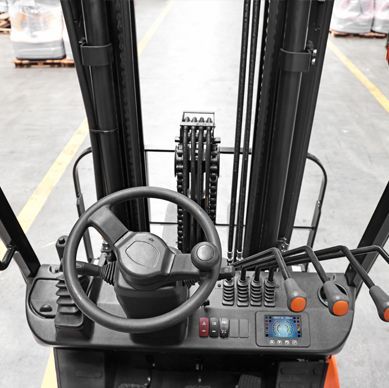

Mast Options

Standard 118" 2-stage included. Four optional masts: 177" 3-stage FFV (+$2,600), 189" 3-stage FFV (+$2,900), 236" 3-stage FFV (+$4,300), 240" 4-stage FFV (+$6,800). The 4-stage 240" mast delivers true high-bay reach in a cushion forklift platform.

Additional Options

• Cascade Side-Shift Fork-Positioner (Hoses and valves included) +$3,300 (both variants)

Tire Sizing & Performance

• FL4C50 (5,000 lb) - Drive 21×7-15, Steer 16×6×10.5, Turn 78.3", Gradient 28.9%

• FL4C65 (6,000 lb) - Drive 21×8-15, Steer 16×6×10.5, Turn 81.5", Gradient 24.7%

• FL4C65 (6,500 lb) - Drive 21×8-15, Steer 16×6×10.5, Turn 81.5", Gradient 24%

Operator Comfort & Safety

• Operator Presence Sensing System

• Operator Restraint System with retractable seat belt

• Suspension Seat

• IMS Display Indicators

• Reverse Alarm standard - OSHA-recommended audible warning

• Comfort Package - rear grab bar with horn, USB connector, rear work light, rear blue light, left & right rear-view mirrors

• Cylinder Boots for Tilt Cylinder

Standard Configuration

118" 2-Stage mast, 42" forks, Cascade side-shift, 4-way proportional hydraulic control valve, Hyundai HMC 2.4L T3 LPG engine, suspension seat, cylinder boots for tilt cylinder, IMS display, reverse alarm, complete comfort package.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and engine. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
