CBT40 Lithium Stand-Up Counterbalanced Forklift

Overview

The CBT40 Lithium Counter Balanced Stand-Up Forklift is the 4,000 lb capacity flagship of Noblelift stand-up rider line - the higher-capacity sister to the CBT33. Built on the same premium chassis with American Curtis Intelligent Computer Control, dual independent AC drive motors, German ZF GP25 gearbox, and 36V/560Ah industrial lithium battery, the CBT40 adds 20% more capacity without sacrificing speed or ergonomics.

Stand-Up Counterbalanced Design

• Stand-Up Rider: operator stands on a suspension floorboard for rapid on/off cycles

• Counterbalanced: no straddle legs - works with any pallet shape, drums, IBCs, dunnage

• Ideal for high-capacity cross-docking, narrow-aisle pallet stacking, and heavy mezzanine work

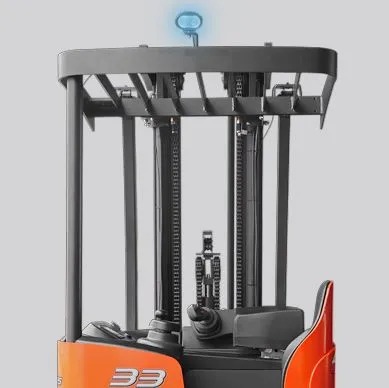

3-Stage Mast Variants

• CBT40-157 - 157" lift, 72.4" LMH, 8,756 lb

• CBT40-189 - 189" lift, 83.1" LMH, 8,888 lb

• CBT40-207 - 207" lift, 89" LMH, 8,976 lb

• CBT40-225 - 225" lift, 95.1" LMH, 9,053 lb

• CBT40-244 - 244" lift, 101.4" LMH, 9,149 lb

4-Stage Mast Variants

• CBT40-236 - 236" lift, 86.1" LMH

• CBT40-256 - 256" lift, 90.7" LMH

• CBT40-276 - 276" lift, 95.2" LMH

36V Fully AC Drive System

• Dual independent AC drive motors with separate American Curtis controllers

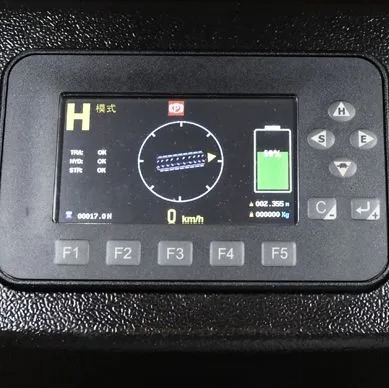

• American Curtis Intelligent Computer Control with on-board self-diagnostics

• German ZF GP25 gearbox - lifetime lubrication

• 36V/560Ah industrial lithium battery - largest in the line

• 36V/200A charger for fast turnaround between shifts

Lithium Battery & Warranty

The 36V/560Ah industrial lithium battery supports full opportunity charging and 24/7 fleet operation with zero maintenance: no watering or equalization, 3,000+ cycle life, sealed BMS, no ventilation required. Backed by a 5-Year Limited Warranty (vs. 3-year on chassis).

Operator Ergonomics

• Suspension Floorboard - isolates operator from chassis vibration

• Adjustable armrest - operator-customizable

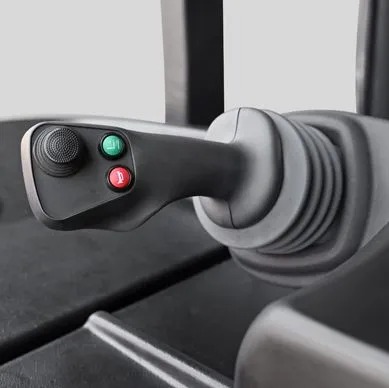

• Integrated multi-task control - lift, lower, side-shift, tilt, travel from the armrest

• Proportional lift and lower for precise placement

• Side shifter & fork tilt leveling standard

• Hydraulic steering standard - full-load steering with minimum effort

• Speed reduction while turning standard

Performance

Travel speed 6.8 mph - among the fastest in its class. Standard fork size 36"L x 4"W (Class II). Load tire 16" x 7" x 10.5" pressed solid; steer tire 10" x 5" x 6.5" pressed solid.

Optional Upgrades

• Fork Length 42" - +$100

• Fork Length 48" - +$180

• Fork Length 54" - +$180

• Fork Length 60" - +$300

• SSFP (3-Stage Masts Only) - +$5,200

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The lithium battery carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
