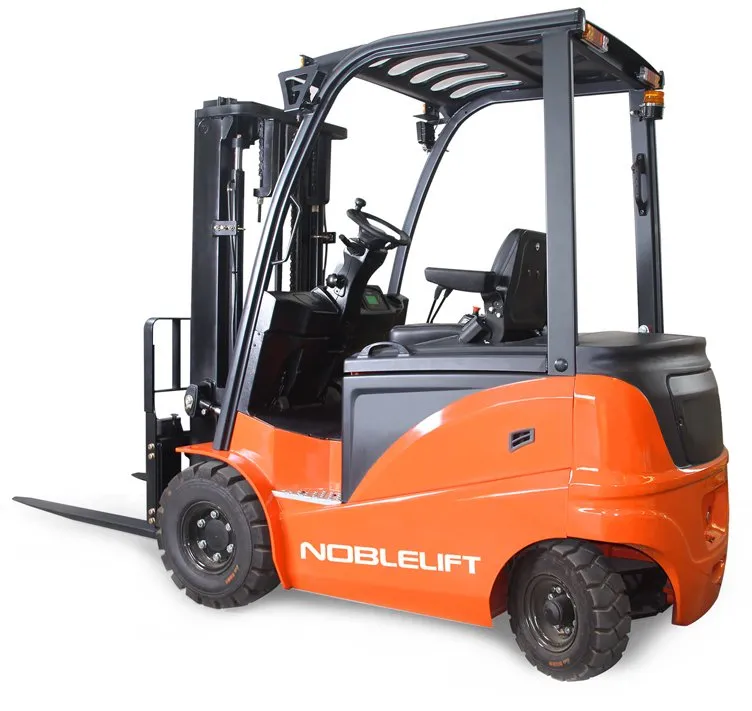

FE4P60N / FE4P70N Series 4-Wheel Pneumatic Electric Forklift

Overview

The FE4P60N / FE4P70N Series Electric Forklift is Noblelift AC Powered 4-Wheel Pneumatic Electric Forklift in 6,000-7,000 lb capacities. 80V fully AC drive with factory-installed 80V/500Ah lead-acid battery and two optional lithium upgrade tiers.

AC Powered Electric Forklifts

• Solid pneumatic tires for indoor/outdoor mixed-surface operation

• 4-wheel layout for maximum load stability

• All-Around Front Wheel Drive for superior traction

• 80V Fully AC drive

Model Variants

• FE4P60N - 6,000 lb, 10,756 lb service weight

• FE4P70N - 7,000 lb, 11,478 lb service weight

Curtis / InMotion Drivetrain & Controls

• Curtis or InMotion Controller with adjustable performance parameters

• 80V Fully AC drive with multiple regenerative systems

• All-Around Front Wheel Drive

• AC Hydraulic Pump & Power Steering Motor

• IMS Display Indicators with on-board self-diagnostics

• 4-Way Proportional Hydraulic Control Valve standard

• On-Demand Fully Hydrostatic Power Steering (FHPS)

• Battery Discharge Indicator (BDI) with lift interrupt

• Combination Lever with Integrated F/R Switch

Mast Options

Standard 118" 2-stage included. Seven optional masts: 118" 2-stage FFV (+$1,400), 157" (+$2,500), 177" (+$2,800), 189" (+$3,100), 197" (+$3,400), 217" (+$3,900), 236" 3-stage FFV (+$4,700).

Battery & Charger

Standard 80V/500Ah lead-acid + 80V/65A 3-phase charger. Two optional lithium upgrades: 80V/400Ah LFP + 80V/200A charger (+$7,000), 80V/554Ah LFP + 80V/200A charger (+$12,700). Battery compartment 40"W × 27"L × 30"H, weight 2,800-3,400 lb, REMA 95505-01 connector. Lithium upgrade carries 10-Year Limited Battery Warranty.

Additional Options

• Lithium Battery Heat Wrap for Colder Temperatures +$500

• Cascade Fork Positioner +$2,600

• Non-marking Solid Tires +$1,000

Operator Comfort & Safety

• Operator Presence Sensing System

• Operator Restraint System with retractable seat belt

• Full / Deluxe Suspension Seat

• Tilt Steering Column with small spinner-knob steering wheel

• Comfort Package - OHG headlights, blue light, rear work light, rear grab bar w/ horn, USB connector, dual rearview mirrors

• 48" High Load Back Rest

• Side Shift standard

• IPX4 Water Resistance Design

Standard Configuration

118" 2-Stage mast, 42" forks, 24" load center, 6°F/10°B tilt, 80V/500Ah lead-acid + 80V/65A 3-phase charger, side shift, full suspension seat, OHG 80.5", solid pneumatic drive 23×9-10-18PR (60N) or 23×10-12-18PR (70N) + steer 18×7-8-14PR, 80V fully AC, all-around FWD, IPX4.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on optional lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
