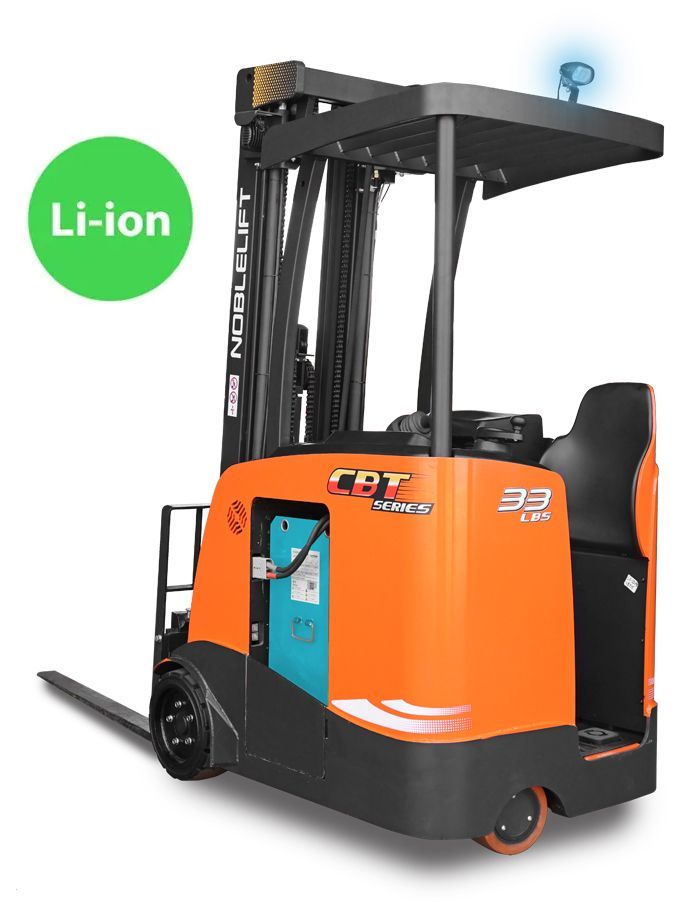

CBT33 SERIESLithium Stand-Up Counterbalance Forklift

Overview

The CBT33 Lithium Counter Balanced Stand-Up Forklift is Noblelift premium stand-up rider forklift - engineered for narrow-aisle warehousing, distribution centers, and high-throughput operations. With 3,300 lb capacity and eight mast configurations spanning 157" to 276" of lift, the CBT33 delivers stand-up rider ergonomics, full lithium power, and a 36V fully AC drivetrain.

Stand-Up Counterbalanced Design

• Stand-Up Rider: operator stands on a suspension floorboard for rapid on/off cycles

• Counterbalanced: no straddle legs - works with any pallet shape, drums, IBCs, dunnage

• Ideal for cross-docking, narrow-aisle stacking, mezzanine work, and any application where a sit-down forklift is too large

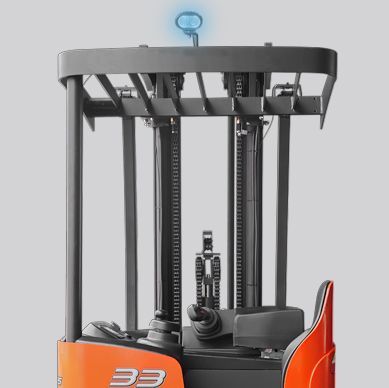

3-Stage Mast Variants

• CBT33-157 - 157" lift, 72.4" LMH, 8,756 lb

• CBT33-189 - 189" lift, 83.1" LMH, 8,888 lb

• CBT33-207 - 207" lift, 89" LMH, 8,976 lb

• CBT33-225 - 225" lift, 95.1" LMH, 9,053 lb

• CBT33-244 - 244" lift, 101.4" LMH, 9,149 lb

4-Stage Mast Variants

• CBT33-236 - 236" lift, 86.1" LMH

• CBT33-256 - 256" lift, 90.7" LMH

• CBT33-276 - 276" lift, 95.2" LMH

36V Fully AC Drive System

• Dual independent AC drive motors with separate Curtis controllers

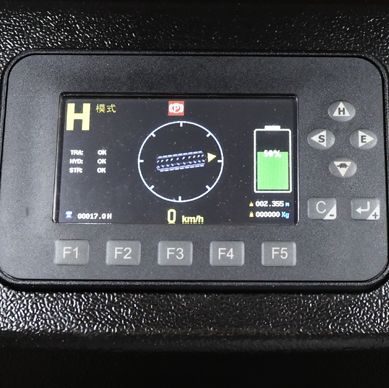

• Curtis Intelligent Computer Control with on-board self-diagnostics

• German ZF GP25 gearbox - lifetime lubrication

• 36V/560Ah industrial lithium battery - largest in the line

• 36V/200A charger for fast turnaround between shifts

Lithium Battery & Warranty

The 36V/560Ah industrial lithium battery supports full opportunity charging and 24/7 fleet operation with zero maintenance: no watering or equalization, 3,000+ cycle life, sealed BMS, no ventilation required. Backed by a 5-Year Limited Warranty (vs. 3-year on chassis).

Operator Ergonomics

• Suspension Floorboard - isolates operator from chassis vibration

• Adjustable armrest - operator-customizable

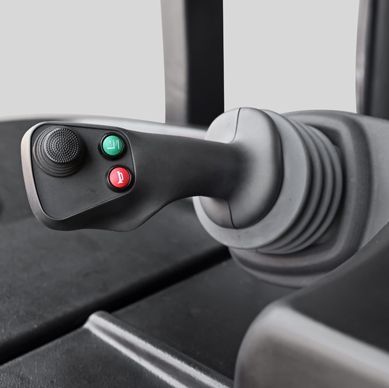

• Integrated multi-task controls - lift, lower, side-shift, tilt, travel from the armrest

• Proportional lift and lower for precise placement

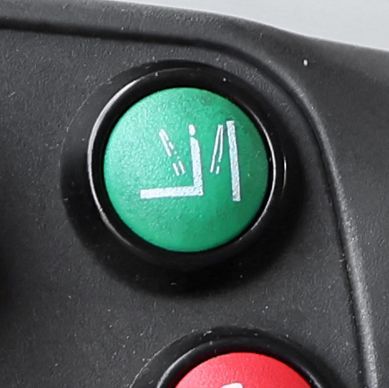

• Side-Shift & Fork Tilt Leveling standard

• Power Steering standard - single-finger turning under load

• Speed reduction while turning standard

Performance

Travel speed 6.8 mph - among the fastest in its class, suitable for long aisles and high-throughput dock-to-stock work. Standard fork size 36"L x 4"W (Class II). Load tire 16" x 7" x 10.5" pressed solid; steer tire 10" x 5" x 6.5" pressed solid.

Optional Upgrades

• Fork Length 42" - +$100

• Fork Length 48" - +$180

• Fork Length 54" - +$180

• Fork Length 60" - +$300

• SSFP (3-Stage Masts Only) - +$5,200

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The lithium battery carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
