FTH Series 4WD Diesel Telehandler (FTH50N-197 / FTH50N-236 / FTH60N-177)

Overview

The FTH Series 4WD Diesel Telehandler (FTH50N-197/236, FTH60N-177) is Noblelift telescoping-boom rough-terrain forklift with LS Mtron 2.5L 56HP EPA Tier 4 turbo diesel, hydraulic 4WD, multi-functional joystick, tri-channel cooling, anti-rollover protection, and self-leveling system within ±0.5°. 3-Year Limited Warranty.

What is a Telehandler?

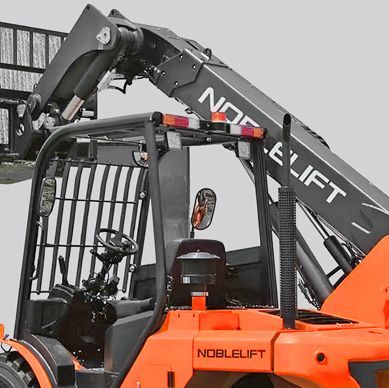

A telehandler combines the outreach of a small crane with the load-handling of a forklift. The telescoping boom extends forward and up, placing loads where a conventional mast forklift cannot reach - over scaffolding, into upper-floor openings, onto trailer beds, or across material stacks.

Built for Job-Site Performance

• Pneumatic tires for outdoor surfaces

• Hydraulic 4-Wheel Drive

• 45% full-load gradeability

• 9.65" ground clearance

• Telescoping boom forward reach up to 153.5" (3.9m)

• Self-leveling carriage (±0.5°)

• Anti-rollover protection system

• Multi-functional joystick

Model Variants

• FTH60N-177 - 6,000 lb / 177" lift / 90.5" (2.3m) reach / 11,800 lb

• FTH50N-197 - 5,000 lb / 197" lift / 114" (2.9m) reach / 12,100 lb

• FTH50N-236 - 5,000 lb / 236" lift / 153.5" (3.9m) reach / 12,320 lb

Engine & Drivetrain

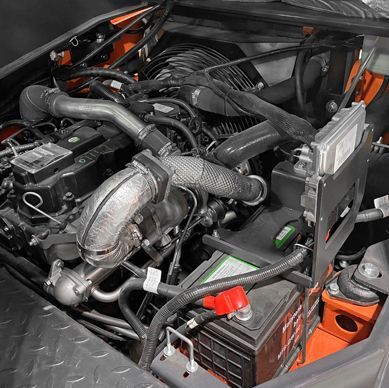

• Engine: LS Mtron Diesel Turbo (Korean) — 2.5L 56HP, EPA Tier 4 Certified

• Transmission: Hydraulic 4-Wheel Drive

• Maximum Travel Speed: 11.2 mph (18 km/h)

• Tri-Channel Cooling - sustained thermal stability

Telehandler-Specific Features

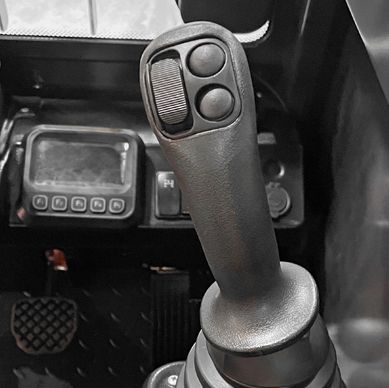

• Multi-Functional Joystick - single-hand control of extend/retract, lift/lower, tilt, side-shift

• Self-Leveling System - carriage and forks tilt within ±0.5°

• Anti-Rollover Protection System - load-moment limiter

• Proportional Solenoid Valve - high-precision, smooth boom motions

• IMS Display Indicators - load weight, boom angle, reach distance

Additional Options

• Cabin with A/C and Heater +$6,000

• Light Bucket for Sand and Gravel +$1,500 (53"×61"×27.5", 0.6m³, 2,500 lb capacity)

• Special Attachment - CALL for quote (post-hole auger, hay bale spear, masonry hopper, work platform, boom-mounted grapple, etc.)

Standard Configuration

48" forks with integrative side-shifter, 24" load center, 4-way proportional hydraulic control valve, multi-functional joystick, LS Mtron 2.5L 56HP EPA Tier 4 diesel turbo engine, hydraulic 4WD transmission, tri-channel cooling, IMS display, suspension seat, OPS, anti-rollover protection, self-leveling carriage (±0.5°), proportional solenoid valve, pneumatic 14-17.5L-14PR drive + 10.0/75-15.3 steer tires, 63"W × 89.7"H, 9.65" ground clearance, 45% full-load gradeability, 11.2 mph max travel speed.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and engine. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
