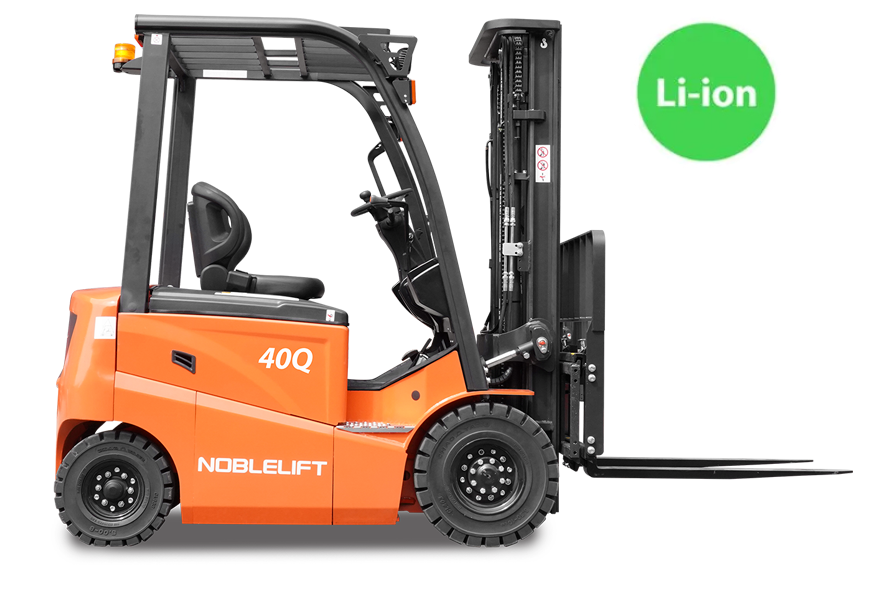

FE4P40Q Series 4-Wheel Pneumatic Lithium Forklift
The FE4P40Q is a 4-wheel pneumatic lithium electric forklift with 4,000 lb capacity. Features 48V fully AC drive, all-around front wheel drive, Curtis or InMotion controller, on-demand fully hydrostatic power steering, side shift, deluxe suspension seat, IPX4 waterproof design, and 48V/300Ah LFP lithium battery standard. 3-Year Chassis Limited Warranty + 10-Year Limited Warranty on Lithium Battery.
- 4,000 load capacity
- Electric-powered
- Factory-direct from authorized Noblelift dealer
1 sizes · all $28,200/unit
MAP-compliant pricing · Net-30 on approval
1. Model selected
2. Configure your 4,000 lb Capacity FE4P40Q
At a Glance
About This Equipment
Overview
The FE4P40Q Series Lithium Forklift is Noblelift AC Powered 4-Wheel Pneumatic Electric Forklift with 4,000 lb capacity, 48V fully AC drive, and factory-installed 48V/300Ah LFP lithium battery with 10-year battery warranty.
AC Powered Electric Forklift
Solid pneumatic tires for indoor/outdoor mixed-surface operation
4-wheel layout for maximum load stability
All-Around Front Wheel Drive for superior traction
48V Fully AC drive
Model Details
FE4P40Q - 4,000 lb capacity, 6,996 lb service weight, $28,200. Ships with 118" 2-stage mast, 42" forks, 48V/300Ah lithium battery, integrated side-shift, deluxe suspension seat.
Curtis / InMotion Drivetrain & Controls
Curtis or InMotion Controller with adjustable performance parameters
48V Fully AC drive with multiple regenerative systems
All-Around Front Wheel Drive
AC Hydraulic Pump & Power Steering Motor

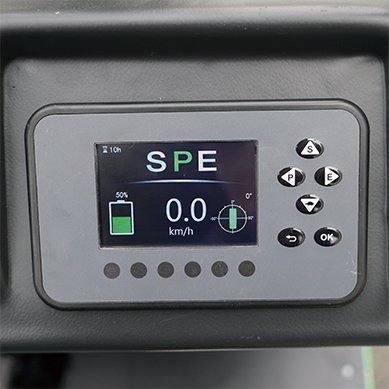

IMS Display Indicators with on-board self-diagnostics
4-Way Proportional Hydraulic Control Valve standard
On-Demand Fully Hydrostatic Power Steering (FHPS)
Battery Discharge Indicator (BDI) with lift interrupt
Mast Options
Standard 118" 2-stage included. Four optional 3-stage Full Free View masts: 157" (+$2,500), 177" (+$2,800), 189" (+$3,100), 197" (+$3,400).
Lithium Battery & Charger
48V/300Ah Lithium LFP battery + 48V/150A 208-240V or 480V 3-phase charger standard (or 110V charger N/C). Optional upgrade: 48V/400Ah lithium + 48V/200A REMA charger (+$2,900). 10-Year Limited Battery Warranty.
Additional Options
48V/400Ah Lithium Battery + REMA Charger +$2,900
Lithium Battery Wrap for Colder Temperatures +$500
Cascade Fork Positioner +$2,100
Non-marking Solid Tires +$900
110V Charger in lieu of standard 150Ah external charger - N/C
Operator Comfort & Safety
Operator Presence Sensing System
Operator Restraint System with retractable seat belt
Deluxe Suspension Seat / Comfort Seat

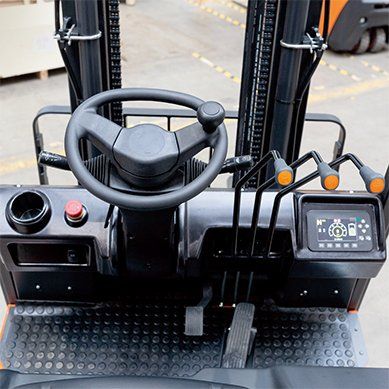

Tilt Steering Column with small spinner-knob steering wheel

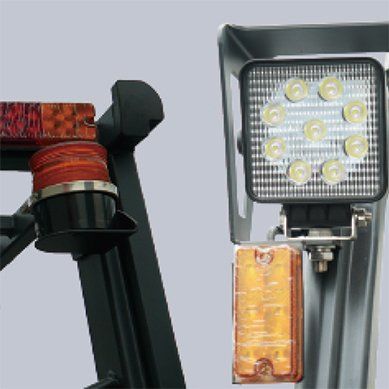

Comfort Package - OHG headlights, blue light, rear work light, rear grab bar w/ horn, USB connector, dual rearview mirrors
48" High Load Back Rest
Side Shift standard
IPX4 Water Resistance Design
Standard Configuration
118" 2-Stage mast, 42" forks, 24" load center, 6°F/10°B tilt, 48V/300Ah lithium + 48V/150A 3-phase charger, side shift, deluxe suspension seat, OHG 80.8", solid pneumatic drive 18×7-8 + steer 5.00-8-10PR, 48V fully AC, all-around FWD, IPX4.
Warranty & Support
3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on the lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
Full Specifications
| Standard Fork Length | 42 in |
| OHG Height | 80.8 in |
| Voltage | 48V |
| Fuel Type | Electric (Lithium) |
| Lithium Battery (Standard) | 48V / 300Ah LFP |
| Lithium Battery (Optional) | 48V / 400Ah (+$2,900) |
| Lithium Charger (Standard) | 48V 110V or 48V/150A 208-240V or 480V 3-Phase |
| Warranty (Lithium Battery) | 10-Year Limited |
Shipping
Real-time shipping quote calculated at checkout.
Warranty & Included
PHS Lift handles warranty registration on your behalf — you must submit our online registration form within 10 days of delivery to activate coverage. Full warranty terms →
