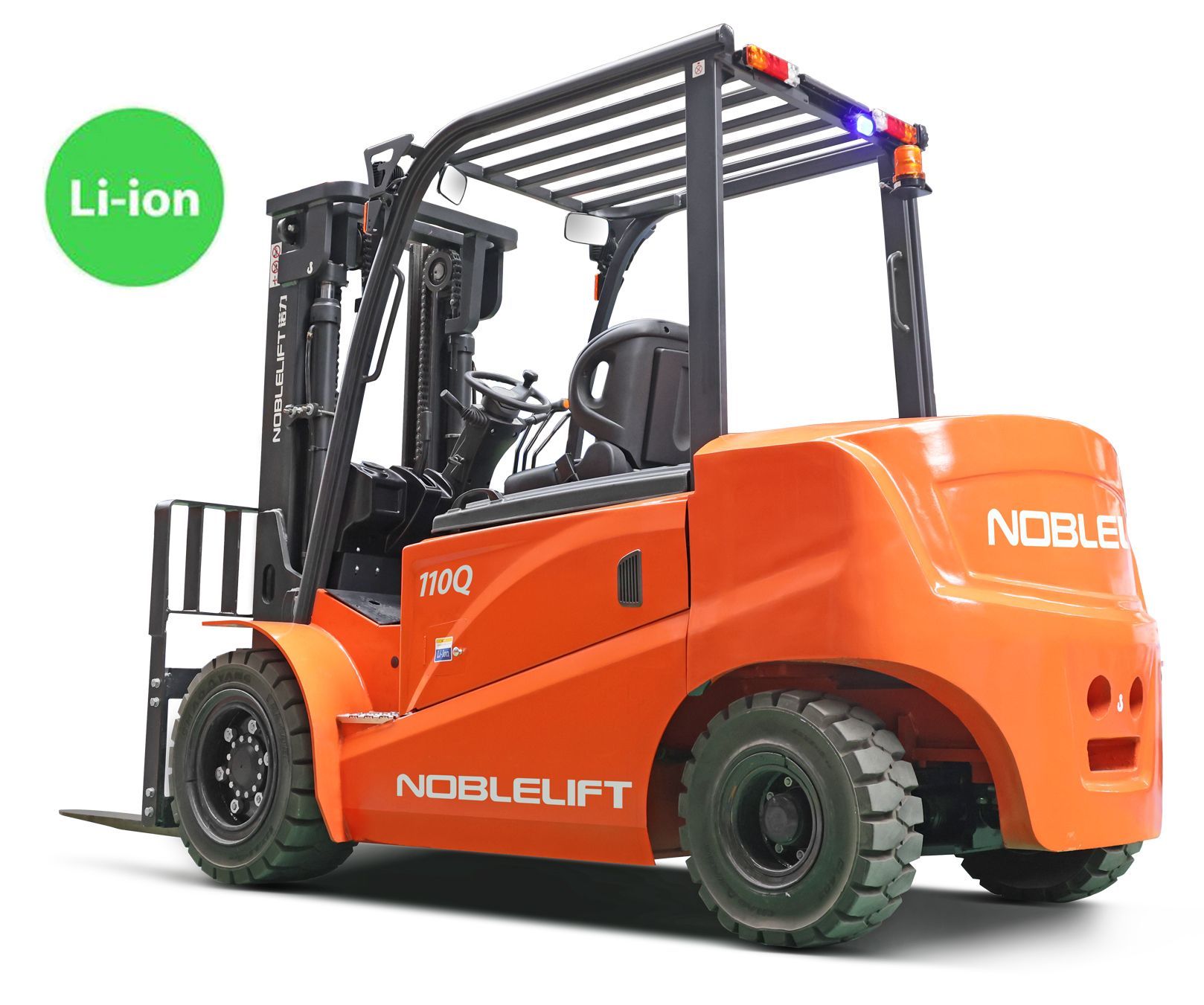

FE4P90/100/110Q Series Heavy-Duty 4-Wheel Pneumatic Lithium Forklift

Overview

The FE4P90/100/110Q Series Lithium Forklift is Noblelift heavy-duty 80V AC Powered 4-Wheel Pneumatic Electric Forklift with capacities from 9,000 to 11,000 lb. 80V/400Ah LFP lithium battery standard with 10-year battery warranty.

AC Powered Heavy-Duty Forklift

• Solid pneumatic tires for indoor/outdoor mixed-surface operation

• 4-wheel layout for maximum stability at heavy capacities

• All-Around Front Wheel Drive for superior traction at heavy loads

• 80V Fully AC drive - Class IV/V replacement for 12,000+ lb IC competitors

Model Variants

• FE4P90Q - 9,000 lb, 13,750 lb service weight, $70,000

• FE4P100Q - 10,000 lb, 15,000 lb service weight, $72,000

• FE4P110Q - 11,000 lb, 16,280 lb service weight, $74,000

Curtis / InMotion Drivetrain & Controls

• Curtis or InMotion Controller with adjustable performance parameters

• 80V Fully AC drive with multiple regenerative systems

• All-Around Front Wheel Drive

• AC Hydraulic Pump & Power Steering Motor

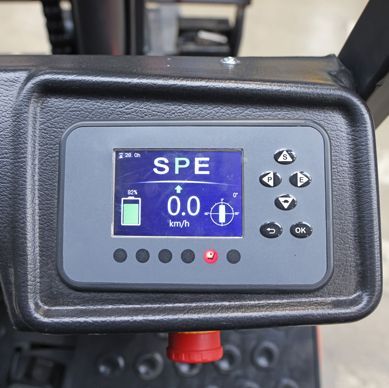

• IMS Display Indicators with on-board self-diagnostics

• 4-Way Proportional Hydraulic Control Valve standard

• On-Demand Fully Hydrostatic Power Steering (FHPS)

• Battery Discharge Indicator (BDI) with lift interrupt

Mast Options

Standard 118" 2-stage included. Six optional 3-stage Full Free View masts: 157" (+$5,000), 177" (+$5,100), 189" (+$6,000), 197" (+$6,400), 217" (+$6,900), 236" (+$7,700). Heavy-duty mast structures handle 9,000-11,000 lb capacity loads.

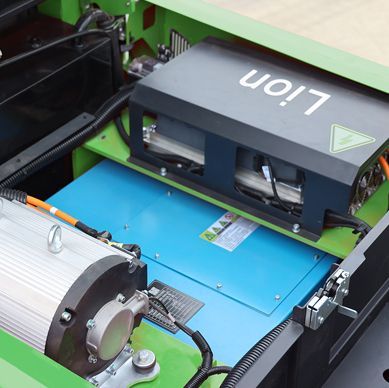

Lithium Battery & Charger

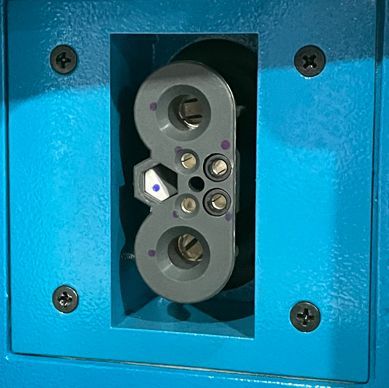

80V/400Ah Lithium LFP battery (larger than lower-capacity FE4P models) + 80V/150A 208-240V or 480V 3-phase charger standard. Optional 80V/554Ah lithium + 80V/200A REMA charger (+$3,700) for ~38% more runtime. 10-Year Limited Battery Warranty.

Additional Options

• Lithium Battery Wrap for Colder Temperatures +$500

• Cascade Fork Positioner +$2,900

• Non-marking Solid Tires +$1,000

• Dual Front Wheel Solid Tires +$1,900 - doubles front contact area for outdoor yards/container handling

• CAB (AC, Heat + FAN) +$6,500 - all-weather enclosed climate-controlled cab

Operator Comfort & Safety

• Operator Presence Sensing System

• Operator Restraint System with retractable seat belt

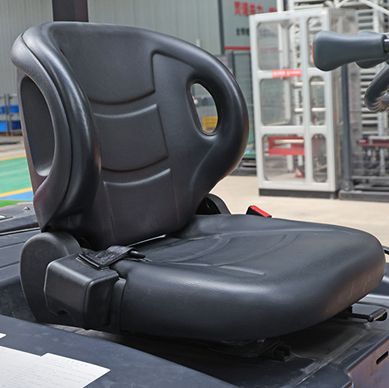

• Deluxe Suspension Seat / Comfort Seat

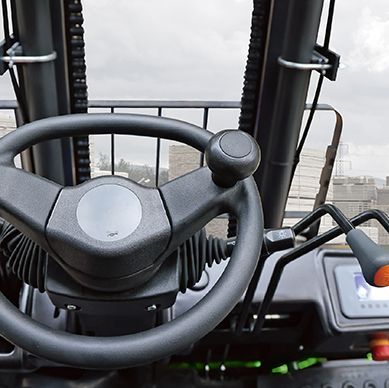

• Tilt Steering Column with small spinner-knob steering wheel

• Comfort Package - OHG headlights, blue light, rear work light, rear grab bar w/ horn, USB onboard power, dual rearview mirrors

• 48" High Load Back Rest

• Side Shift standard

• IPX4 Water Resistant Design

Standard Configuration

118" 2-Stage mast, 42" forks, 24" load center, 6°F/10°B tilt, 80V/400Ah lithium + 80V/150A 3-phase charger, side shift, deluxe suspension seat, OHG 80.8", solid pneumatic drive 18×7-8 + steer 5.00-8-10PR, 80V fully AC, all-around FWD, IPX4.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on the lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
