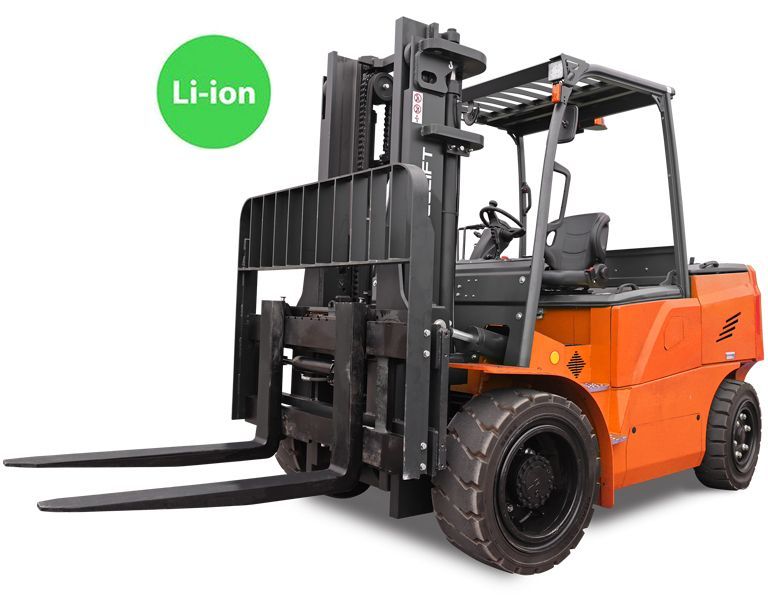

FE4P130N / 150N / 175N Series Heavy-Duty 4-Wheel Pneumatic Lithium Forklift

Overview

The FE4P130N / 150N / 175N Series Electric Forklift is Noblelift flagship Heavy Duty 4-Wheel Pneumatic Lithium Electric Forklift with capacities from 13,000 to 17,500 lb. 96V/840Ah LFP lithium battery standard, A.I. pedestrian-detecting back-up camera standard, 10-year battery warranty.

Heavy-Duty Performance

• Solid pneumatic tires for heavy-duty industrial yards

• 4-wheel layout for maximum stability at extreme capacities

• All-Around Front Wheel Drive for superior traction on grades

• 96V Fully AC drive - Class V/VI replacement for 20,000+ lb IC trucks

Model Variants

• FE4P130N - 13,000 lb, 19,646 lb service weight, $106,000

• FE4P150N - 15,000 lb, 20,680 lb service weight, $110,000

• FE4P175N - 17,500 lb, 24,640 lb service weight, $115,000

InMotion Drivetrain & Controls

• InMotion Adjustable Performance Parameters

• 96V Fully AC drive with multiple regenerative systems

• All-Around Front Wheel Drive

• AC Hydraulic Pump & Power Steering Motor

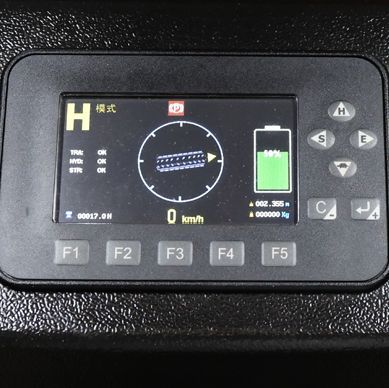

• IMS Display Indicators with on-board self-diagnostics

• 4-Way Proportional Hydraulic Control Valve on STD mast standard

• On-Demand Fully Hydrostatic Power Steering (FHPS)

• Battery Discharge Indicator (BDI) with lift interrupt

Mast Options

Standard 118" (3m) duplex included. Six optional masts: 157" 2-stage FV (+$1,800), 177" 2-stage FV (+$2,700), 197" 2-stage FV (+$3,600), 157" 3-stage FFV (+$6,100), 177" 3-stage FFV (+$6,300), 189" 3-stage FFV (+$7,400). Heavy-duty mast structures handle 13,000-17,500 lb capacity loads.

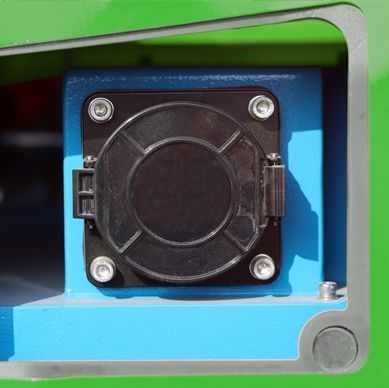

Lithium Battery — Smaller-Pack Deduct Options

Standard 96V/840Ah LFP battery with BMS + International Antenna and 96V/200A 220V or 480V charger. Three smaller-pack deduct options reduce cost for single-shift buyers: 96V/412Ah (-$10,700), 96V/554Ah (-$6,700), 96V/618Ah (-$5,800). 110V charger optional. 10-Year Limited Battery Warranty on all configurations.

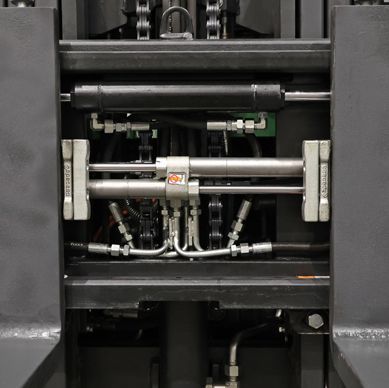

Side Shifter & Fork Positioner Standard

Longhe Hang-on SSFP with 60" forks STANDARD. Optional upgrades: 72" forks (+$700), 96" forks (+$1,500), Cascade brand SSFP with 48" forks (+$5,800). Non-marking tires +$1,300.

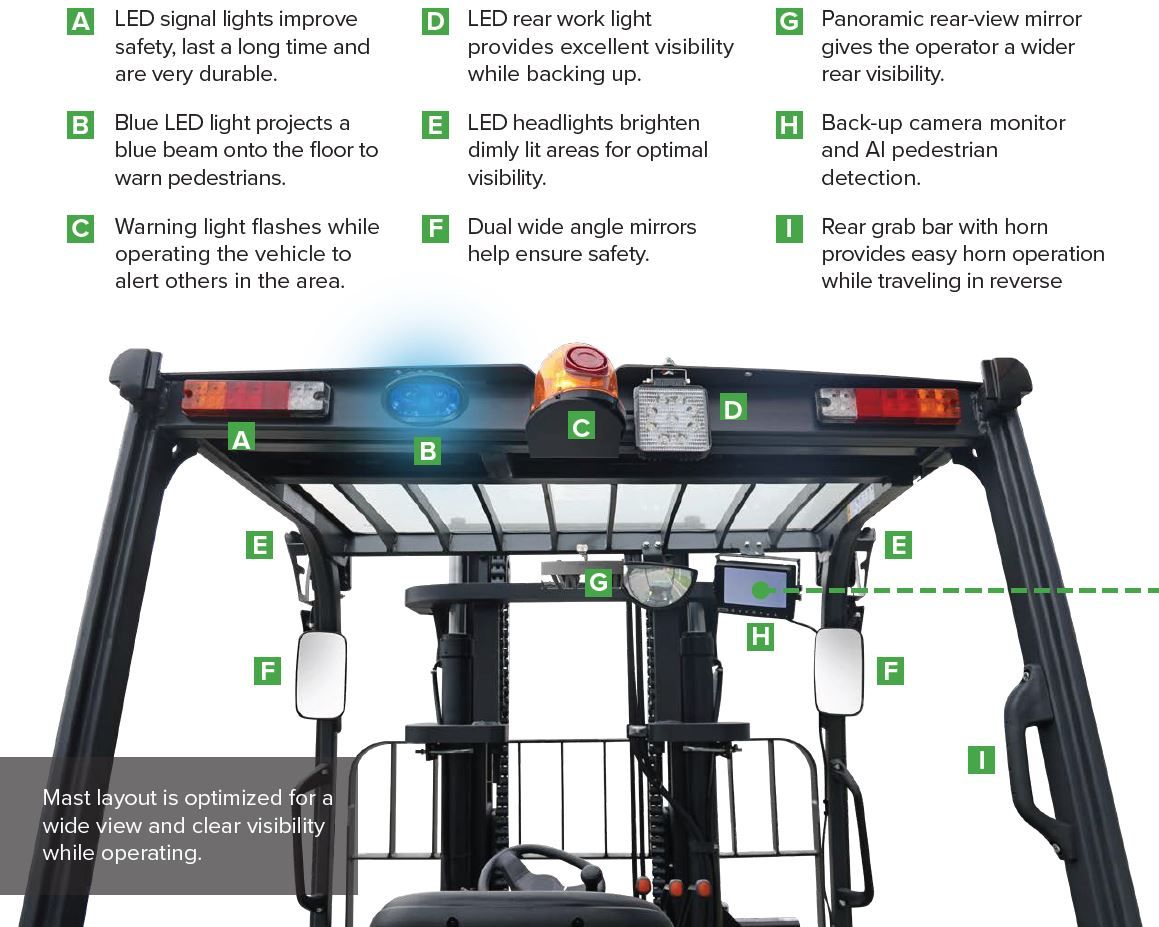

A.I. Safety & Operator Comfort

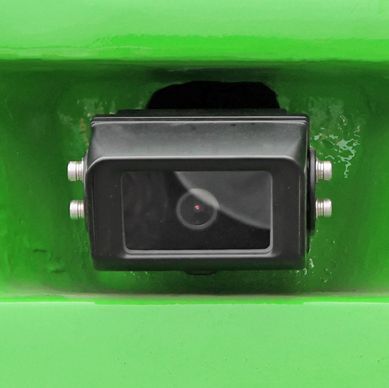

• Back-up Camera with A.I. Pedestrian Sensors - STANDARD on this heavy-duty range

• OPS with safety belt interlock

• Full Suspension Seat (heavy-duty rated)

• Tilt Steering Column with small spinner-knob steering wheel

• Comfort Package - OHG headlights, blue light, rear work light, rear grab bar w/ horn, USB connector, dual rearview mirrors

• IPX4 Waterproof Design

Standard Configuration

118" (3m) Duplex mast, 60" forks with Longhe SSFP, 5°F/10°B tilt, 96V/840Ah lithium + 96V/200A 220V or 480V charger, A.I. back-up camera, full suspension seat, OALH 98.4", turning radius 117.3", solid pneumatic drive 355/65-15 (130N/150N) or 355/50-20 (175N), steer 250-15, 96V fully AC, all-around FWD, IPX4.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on the lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
