FE4C50/C65 Series 4-Wheel Cushion Lithium Forklift
The FE4C50/C65 Series is a 4-wheel cushion lithium electric forklift in 5,000 and 6,500 lb capacities. Features 80V fully AC drive, InMotion controller, on-demand fully hydrostatic power steering, Cascade side shift, suspension seat, IPX4 waterproof design, and 80V/412Ah LFP lithium battery standard with international-antenna BMS. 3-Year Chassis Limited Warranty + 10-Year Limited Warranty on Lithium Battery.
- 2 configurations available
- In stock — Chicago & California
Configured for your application. Volume discounts and Net-30 available.
1. Choose your model
At a Glance
About This Equipment
Overview
The FE4C50 / FE4C65 Series 4-Wheel Cushion Lithium Forklift is Noblelift heavy-duty 80V indoor cushion-tire forklift with 5,000 and 6,500 lb capacities. 80V/412Ah LFP lithium battery standard with 10-year battery warranty.
Fully AC Powered Cushion Forklift
Cushion solid tires for smooth indoor concrete floors
4-wheel layout for maximum stability at 5,000-6,500 lb capacities
80V Fully AC drive - same voltage class as 8,000+ lb IC competitors
AC Hydraulic Pump & Power Steering Motor
Model Variants
FE4C50 - 5,000 lb, Drive Tire 21×7-15
FE4C65 - 6,500 lb, Drive Tire 21×8-15
InMotion Drivetrain & Controls
InMotion Controller with adjustable performance parameters
80V Fully AC drive with regenerative braking
AC Hydraulic Pump & Power Steering Motor
4-Way Proportional Hydraulic Control Valve
On-Demand Fully Hydrostatic Power Steering (FHPS)
Battery Discharge Indicator (BDI) with lift interrupt
Mast Options
Standard 118" included. Eight optional masts: 118" 2-stage FFV (+Quote), 157" 3-stage FFV (+Quote), 177" 3-stage FFV (+Quote), 189" 3-stage FFV (+Quote), 197" 3-stage FFV (+Quote), 240" 4-stage FFV (+Quote), 260" 4-stage FFV (+Quote), 276" 4-stage FFV (+Quote). 4-stage masts deliver true high-rack reach in a cushion forklift platform.
Lithium Battery & Charger
80V/412Ah LFP battery with integrated BMS and International Antenna standard, paired with 80V/200A multi-voltage charger (110V, 208-240V, or 480V 3-Phase input). Optional Large 80V/554Ah lithium battery available +Quote for extended multi-shift runtime. 10-Year Limited Battery Warranty.
Additional Options
80V/554Ah Lithium Battery +Quote
Cascade Fork Positioner +Quote
Non-Marking Solid Tires +Quote
Battery Heating +Quote (cold-storage)
Operator Comfort & Safety
Operator Presence Sensing System
Operator Restraint System with retractable seat belt

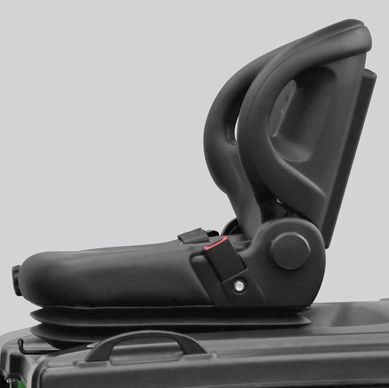

Suspension Seat
Tilt Steering Column with small spinner-knob steering wheel
Comfort Package - OHG headlights, blue light, rear working light, rear grab bar with horn, USB connector, dual rearview mirrors
48" High Load Back Rest
Cascade Side Shift standard
IPX4 Water Resistance Design
Standard Configuration
118" mast, 42" forks, 24" load center, 80V/412Ah lithium + 80V/200A multi-voltage charger, Cascade side shift, solid cushion drive tires (21×7-15 FE4C50 / 21×8-15 FE4C65), steer tires 16×6-10.5, 80V fully AC drive, IPX4.
Warranty & Support
3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on the lithium battery. Extended service plans, on-site training, and field support available through PHS Lift dealer network.
Full Specifications
| Standard Fork Length | 42 in |
| Voltage | 80V |
| Fuel Type | Electric (Lithium) |
| Lithium Battery (Standard) | 80V / 412Ah LFP with BMS and International Antenna |
| Lithium Battery (Optional) | 80V / 554Ah (+Quote) |
| Lithium Charger (Standard) | 80V / 200A (110V, 208-240V or 480V 3-Phase) |
| Warranty (Lithium Battery) | 10-Year Limited |
