FE3C32/C35/C40 Series 3-Wheel Cushion Lithium Forklift

Overview

The FE3C32/C35/C40 Series 3-Wheel Cushion Lithium Forklift is Noblelift premium indoor 3-wheel cushion-tire forklift with dual AC front-wheel drive and capacities from 3,200 to 4,000 lb. 48V/412Ah lithium battery standard with 10-year battery warranty.

Three-Wheel Cushion Design

• Cushion solid tires for smooth indoor concrete floors

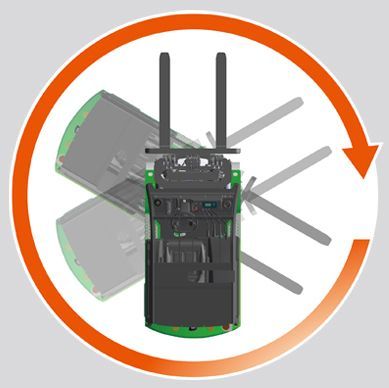

• 3-wheel layout with rear single steer wheel - tighter turning radius

• Dual AC Front Wheel Drive - both front wheels powered for superior traction

• Compact width - 76.8"/77"/82.1" overall

Model Variants

• FE3C32 - 3,200 lb, 7,020 lb service weight, 76.8" wide, $36,000

• FE3C35 - 3,500 lb, 7,304 lb service weight, 77" wide, $37,000

• FE3C40 - 4,000 lb, 7,964 lb service weight, 82.1" wide, $38,000

InMotion Drivetrain & Controls

• InMotion Intelligent Computer Control with adjustable performance parameters

• 48V Fully AC drive with regenerative braking

• Dual AC Front Wheel Drive - both front motors powered

• On-Board Self-Diagnostics

• 4-Way Proportional Hydraulic Control Valve standard

• On-Demand Fully Hydrostatic Power Steering (FHPS)

• Battery Discharge Indicator (BDI) with lift interrupt

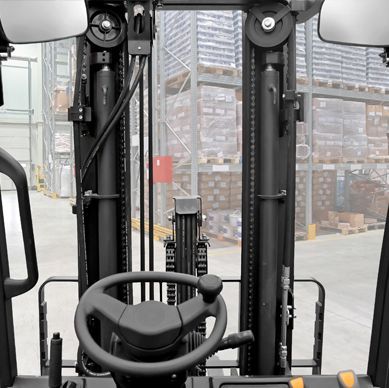

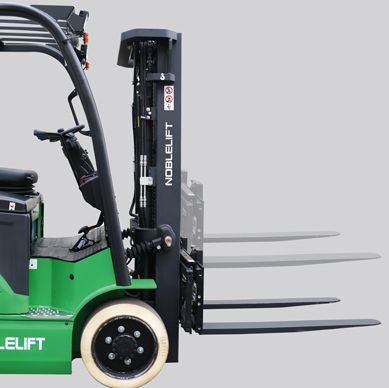

Mast Options

Standard 118" 2-stage duplex included. Six optional masts: 157" 2-stage (+$2,200), 157" 3-stage FFV (+$2,500), 177" 3-stage FFV (+$2,800), 189" 3-stage FFV (+$3,100), 197" 3-stage FFV (+$3,400), 236" 3-stage FFV (+$4,700).

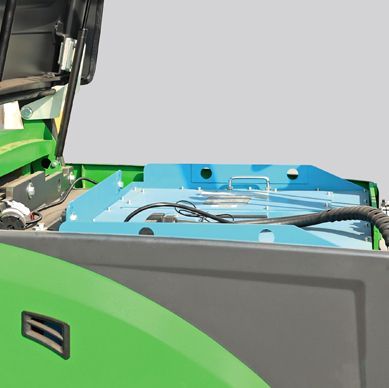

Lithium Battery & Charger

48V/412Ah LFP battery with integrated BMS and International Antenna standard, paired with 48V/200A 3-phase charger (220V or 480V input). Optional Large 48V/554Ah lithium battery available +$2,900 for extended multi-shift runtime. 10-Year Limited Battery Warranty.

Additional Options

• Cascade Side Shift Fork Positioner — New Style +$2,100

• Non-Marking Solid Tires +$300

• Battery Heating +$500 (cold-storage)

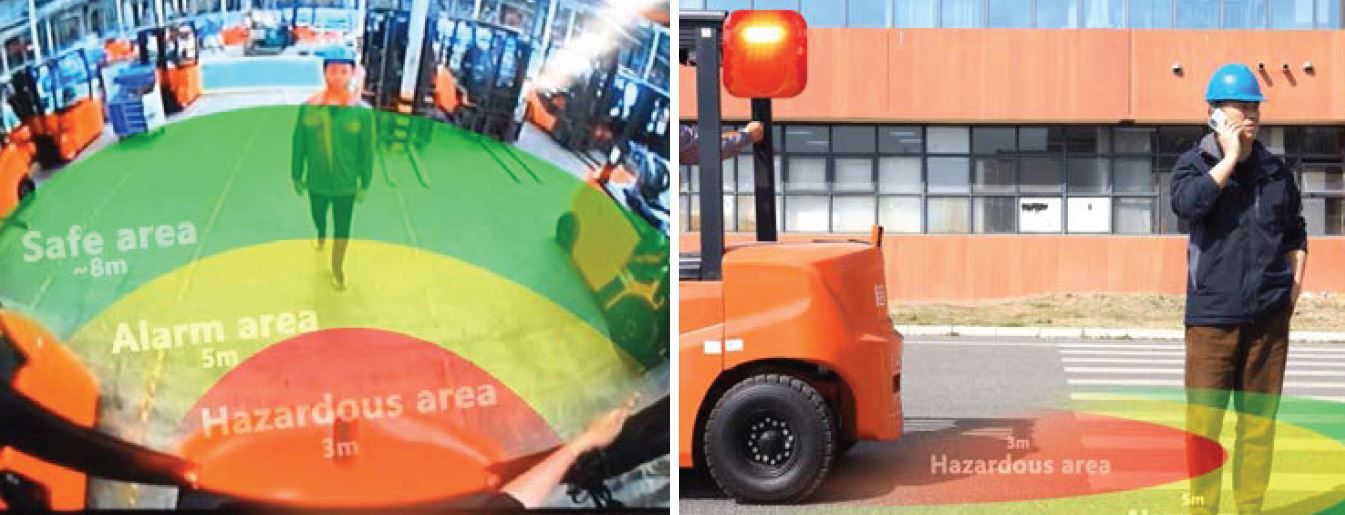

• AI Pedestrian Sensors +$2,300

Operator Comfort & Safety

• OPS with safety belt interlock

• Comfort Package - Blue Light, Rear Work Light, Rear Grab Bar with Horn/USB

• Dual rearview mirrors + OHG headlights

• Deluxe Comfort Seat

• Wet Disc Brakes - sealed, oil-cooled, low-maintenance

• Parking Brake Warning

• IPX4 Waterproof Design

Standard Configuration

118" 2-Stage Duplex mast, 42" forks, 24" load center, 5°F/7°B tilt, 48V/412Ah lithium + 48V/200A 3-phase charger, Cascade side shifter, solid cushion drive tires 18×7×12-1/8 + steer tires 15×5×11-1/4 (C35/C40), dual AC FWD, IPX4.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on the lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
