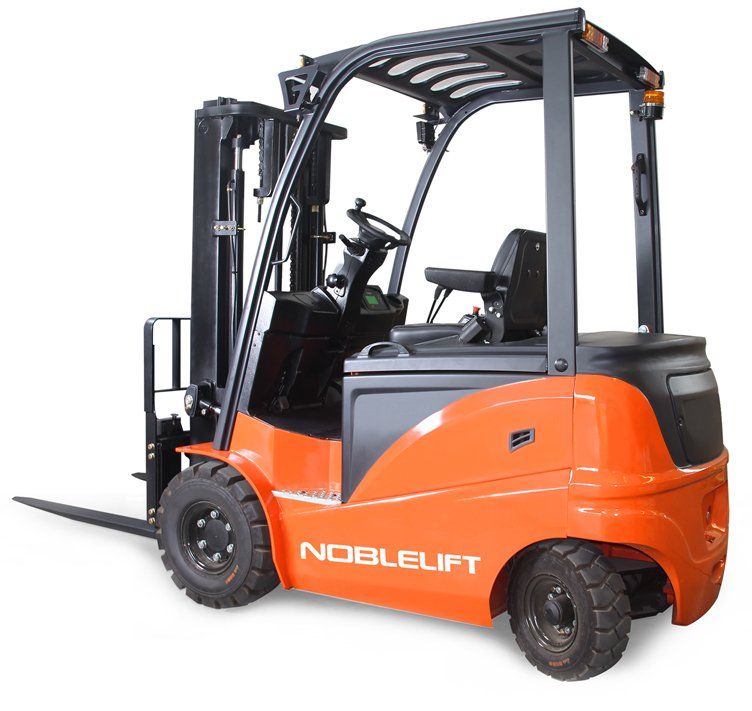

FE4P50N Series 4-Wheel Pneumatic Electric Forklift

Overview

The FE4P50N Series Electric Forklift is Noblelift AC Powered 4-Wheel Pneumatic Electric Forklift with 5,000 lb capacity, 48V fully AC drive, factory-installed 48V/600Ah lead-acid battery, with two optional lithium upgrade tiers.

AC Powered Electric Forklift

• Solid pneumatic tires for indoor/outdoor mixed-surface operation

• 4-wheel layout for maximum load stability

• All-Around Front Wheel Drive for superior traction

• 48V Fully AC drive

Model Details

FE4P50N - 5,000 lb capacity, 9,372 lb service weight, $32,000. Ships with 118" 2-stage mast, 42" forks, 48V/600Ah lead-acid battery, 48V/80A 3-phase charger, integrated side-shift, deluxe suspension seat.

Curtis / InMotion Drivetrain & Controls

• Curtis or InMotion Controller with adjustable performance parameters

• 48V Fully AC drive with multiple regenerative systems

• All-Around Front Wheel Drive

• AC Hydraulic Pump & Power Steering Motor

• IMS Display Indicators with on-board self-diagnostics

• 4-Way Proportional Hydraulic Control Valve standard

• On-Demand Fully Hydrostatic Power Steering (FHPS)

• Battery Discharge Indicator (BDI) with lift interrupt

• Combination Lever with Integrated F/R Switch

Mast Options

Standard 118" 2-stage included. Eight optional masts: 118" 2-stage FFV (+$1,400), 157" (+$2,500), 177" (+$2,800), 189" (+$3,100), 197" (+$3,400), 217" (+$3,900), 236" (+$4,700), 256" 3-stage FFV (+$6,200).

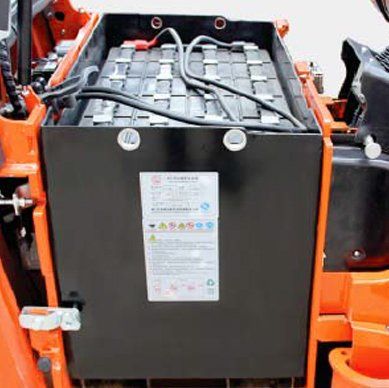

Battery & Charger

Standard 48V/600Ah lead-acid + 48V/80A 3-phase charger. Two optional lithium upgrades: 48V/400Ah LFP + 48V/200A gun charger (+$7,000), 48V/554Ah LFP + 48V/200A gun charger (+$10,200). Battery compartment 38.50"W × 21.5"L × 30"H, weight 2,100-2,450 lb, REMA 95505-01 connector. Lithium upgrade carries 10-Year Limited Battery Warranty.

Additional Options

• Lithium Battery Wrap for Colder Temperatures +$500

• Cascade Fork Positioner +$2,100

• Non-marking Solid Tires +$1,000

Operator Comfort & Safety

• Operator Presence Sensing System

• Operator Restraint System with retractable seat belt

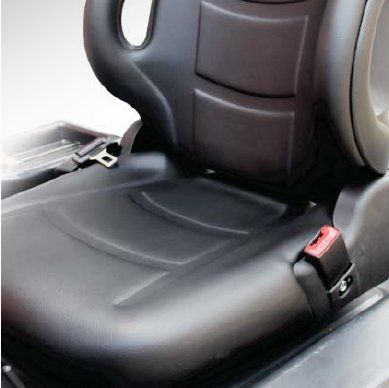

• Full / Deluxe Suspension Seat

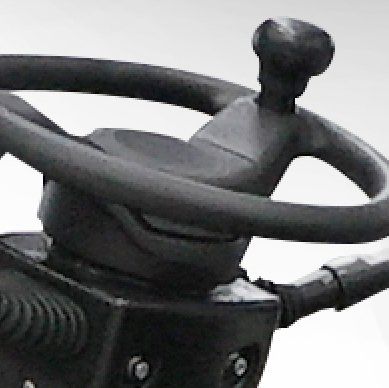

• Tilt Steering Column with small spinner-knob steering wheel

• Comfort Package - OHG headlights, blue light, rear work light, rear grab bar w/ horn, USB connector, dual rearview mirrors

• 48" High Load Back Rest

• Side Shift standard

• IPX4 Water Resistance Design

Standard Configuration

118" 2-Stage mast, 42" forks, 24" load center, 6°F/10°B tilt, 48V/600Ah lead-acid + 48V/80A 3-phase charger, side shift, full suspension seat, OHG 80.5", solid pneumatic drive 23×9-10-18PR + steer 18×7-8-14PR, 48V fully AC, all-around FWD, IPX4.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. 10-Year Limited Warranty on optional lithium battery. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
