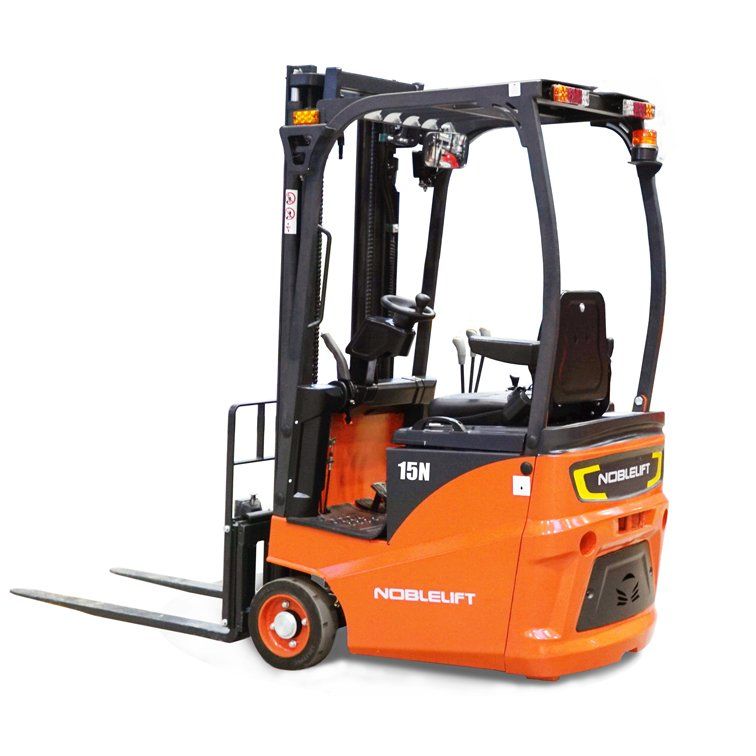

FE3R Series Compact 3-Wheel Electric Forklift

Overview

The FE3R Series Compact Electric Forklift is Noblelift mini compact 3-wheel rear-wheel-drive electric forklift, engineered for tight-aisle warehousing, retail backrooms, manufacturing cells, and any operation where a full-sized 4-wheel forklift cannot fit. 34-inch overall width with three capacity classes from 1,500 to 2,500 lb.

Three-Wheel Rear-Wheel-Drive Design

• Tighter turning radius - rear single steer wheel pivots up to 90°

• Rear-wheel drive - cleaner forward travel under load, better traction with heavy loads

• 34" overall width - fits doorways and tight rack spacing

• Variable wheelbase standard - balances stability with maneuverability

Model Variants

• FE3R15N - 1,500 lb capacity, 3,968 lb

• FE3R20N - 2,000 lb capacity, 4,210 lb

• FE3R25N - 2,500 lb capacity, 4,585 lb

ZAPI Drivetrain & Controls

• ZAPI Intelligent Computer Control (Italy)

• 24V fully AC drive with regenerative braking

• Adjustable Performance Parameters - tune acceleration/speed per operator

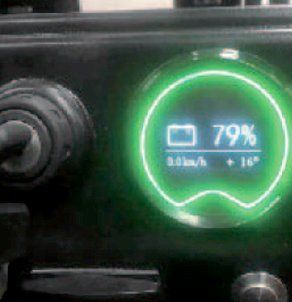

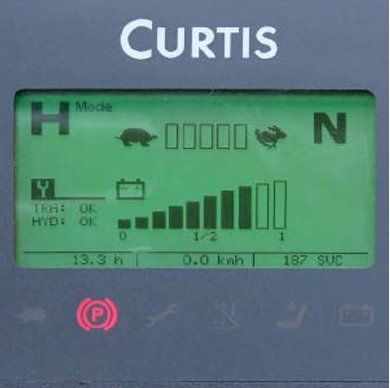

• IMS Display with on-board self-diagnostics

• 3-Way Proportional Hydraulic Control Valve standard

• Battery Discharge Indicator (BDI) with lift interrupt

Mast Options

Standard 118" 2-stage Full Free View included; FE3R20N/25N support three optional 3-stage Full Free View masts: 157" (+$2,500), 177" (+$2,700), 189" (+$3,000). 3-stage masts not available on FE3R15N.

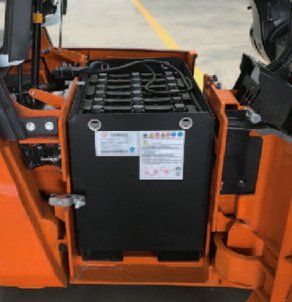

Optional Lithium Battery

FE3R15N: 24V/400Ah LFP + 24V/150A 3-Phase charger (+$4,100). FE3R20N/25N: 24V/300Ah LFP + 24V/50A 3-Phase charger (+$4,400) or 24V/400Ah LFP (+$6,100). German REMA Connector (95044-01), charger wiring required. Lithium upgrade carries a separate 5-Year Limited Warranty.

Operator Comfort & Safety

• Operator Presence Sensing System - disables drive when operator leaves seat

• Operator Restraint System with retractable seat belt

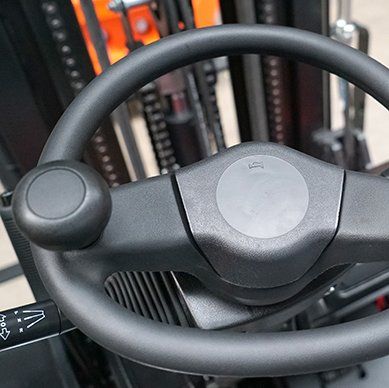

• Tilt Steer Column with small spinner-knob steering wheel

• Combination Lever with integrated F/R switch

• Cushioned Rubber Floor Mat for vibration isolation

• Parking Brake Warning

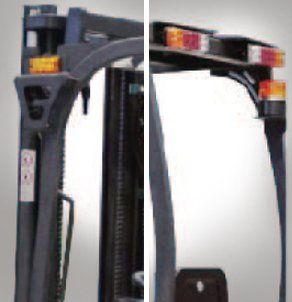

• OHG Headlights, Blue Light, Rear Work Light, dual rearview mirrors

• IPX4 Water Resistance - splash protection for wet floors

• 35" High Load Back Rest prevents tip-back

Standard Configuration

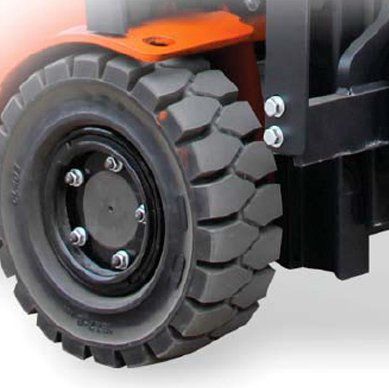

118" 2-Stage Full Free View mast (FFL 41"), 42" forks, side-shift, EPS, cushion drive tires 13"×4.5"×8", rear-wheel drive, 24V fully AC, 34"W × 59"L overall.

Warranty & Support

Backed by a 3-Year Limited Warranty on the chassis, drivetrain, and electrical system. The optional lithium battery upgrade carries a separate 5-Year Limited Warranty. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
