TE22 Li Lithium Powered Walkie Towing Tractor

Overview

The TE22 Li Lithium Powered Walkie Towing Tractor is Noblelift extremely compact and flexible light-duty towing solution. 2,200 lb towing capacity, American Curtis CAN-bus controller, 24V/36Ah lithium battery with BMS, just 190 lb ship weight. 3-Year Limited Warranty.

Extremely Compact and Flexible

• Just 190 lb ship weight - maneuvers in tight back-rooms and corridors

• 22-inch turning radius - pivots within nearly its own footprint

• 2,200 lb towing capacity - moves multiple loaded carts in one trip

• Ergonomic adjustable tiller

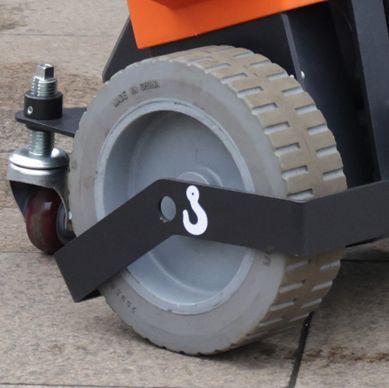

• Wheel guard - protects operator feet during tight maneuvers

• Soft rubber non-marking wheel - appropriate for retail and healthcare floors

Specifications

• Towing Capacity: 2,200 lb

• Ship Weight: 190 lb

• Travel Speed (Unloaded): 3 mph

• Travel Speed (Loaded): 2.8 mph

• Turning Radius: 22 in (560mm)

• MSRP: $3,900

Curtis Drivetrain & PIN-Code Access

• American Curtis Controller with CAN-bus Control

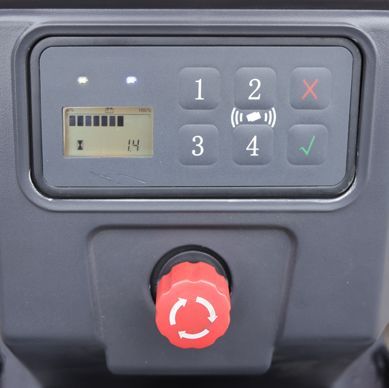

• Multi-Functional Instrument with PIN Code Access - multi-user access control

• Display: Battery Status / Travel Speed / Fault Code

• Drive Axle with Differential Mechanism - smooth, effortless steering

Lithium Battery & Charger — Cross-Platform Compatible

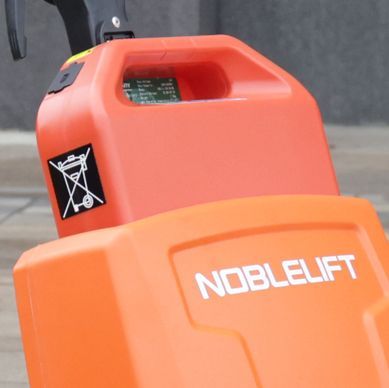

24V/36Ah Lithium battery with integrated BMS, paired with 24V/12A lithium charger. Battery and charger are compatible with the Edge platform, simplifying fleet logistics. No watering, no maintenance, no off-gassing - appropriate for indoor retail and healthcare. Fast opportunity charging.

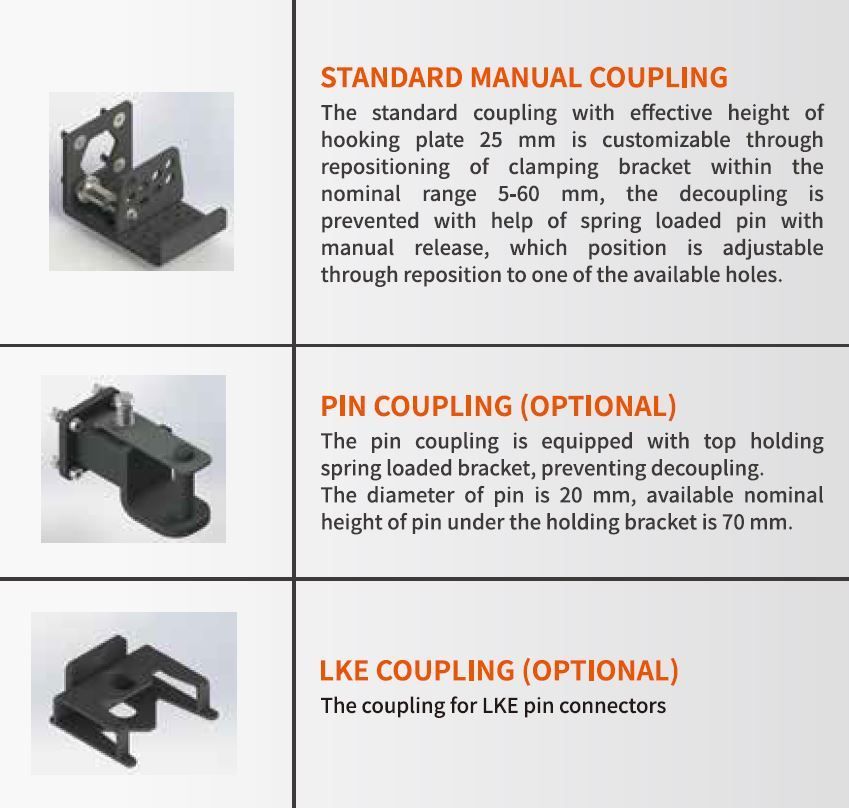

Coupling Options

• Standard Manual Coupling - hooking plate 25mm, multiple-hole repositioning, included

• PIN Coupling (optional) - bar-holding spring-loaded bracket, 27cm × 30cm, 70cm bracket height

• LKE Coupling (optional) - for LKE pin connection

The standard coupling arm is fixed to the tractor, allowing the operator to hitch loads at different coupling heights without re-rigging.

Operator Comfort & Safety

• Ergonomically Designed Handle

• Adjustable Tiller Height

• Wheel Guard for exceptional feet protection

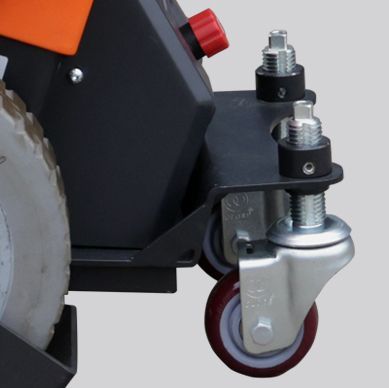

• Swivel Castors with Adjustable Height

• Soft Rubber Non-Marking Wheel

• PIN Code Access - multi-operator access control

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
