T66N / T110N High-Capacity Stand-On Rider Tow Tractors

Overview

The T66N / T110N High-Capacity Stand-On Rider Tow Tractors are Noblelift heavy-duty European-engineered tugger platform with ZAPI Italian controller, German Schabmueller AC drive motor, German Kordel gearbox, and 6,600-11,000 lb drawbar capacity. 3-Year Limited Warranty.

High-Capacity and Powerful

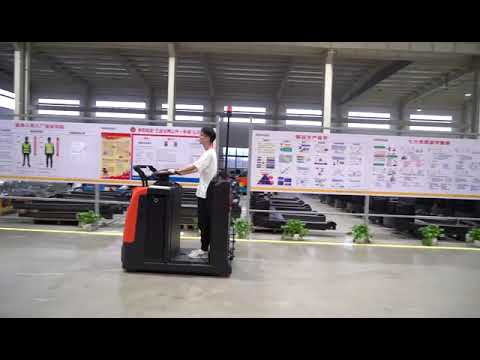

• Stand-on rider operator station for long-distance high-speed transport

• 52.5" turning radius - compact for heavy-duty class

• European drivetrain - ZAPI Italian + Schabmueller German motor + Kordel German gearbox

• 6,600-11,000 lb drawbar capacity

• Reinforced couplers with 3 height adjustments

• Crawl speed button for tight-space precision

Model Variants

• T66N - 6,600 lb drawbar, 2,094 lb ship weight, 5.6/3.7 mph (unloaded/loaded), $14,000

• T110N - 11,000 lb drawbar, 2,249 lb ship weight, 7.45/4.34 mph (unloaded/loaded), $16,000

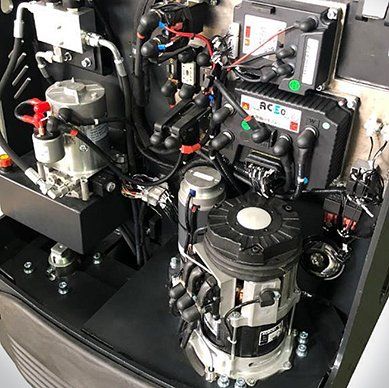

ZAPI / Schabmueller / Kordel Drivetrain

• ZAPI Controller (Italian) - programmable AC with on-board self-diagnostics

• German Schabmueller AC Drive Motor

• German Kordel Gearbox - heavy-duty industrial

• Electric Power Steering (EPS)

• Crawl Speed Button for tight-space operation

• Jog Button on Handle

• Emergency Power Disconnect

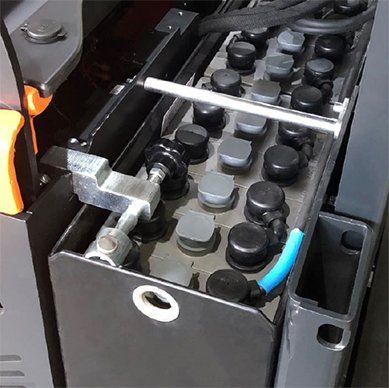

Industrial Battery & Charger

T66N: 24V/375Ah industrial standard. T110N: 24V/465Ah industrial standard. Both with 24V/60A 110V charger. Optional lithium upgrade: 24V/300Ah LFP + 24V/150A industrial charger (+$3,700) - 2.5× faster charging for opportunity charging and 24/7 multi-shift operation.

Smart Handle with Keyless Pin-Code Access

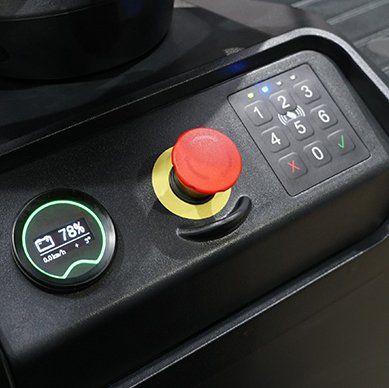

• Keyless Pin-Code Panel - multi-user access control

• LCD Display: battery indicator, travel speed, hour meter, fault codes

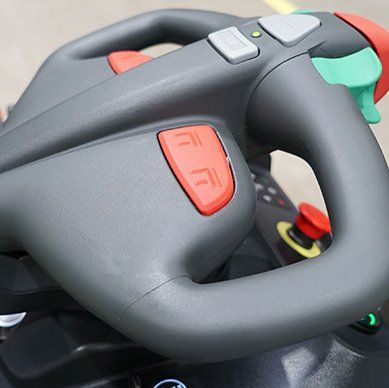

• Ergonomic Control Handle with horn and reverse button

• Dual Butterfly-Style Thumb Controls

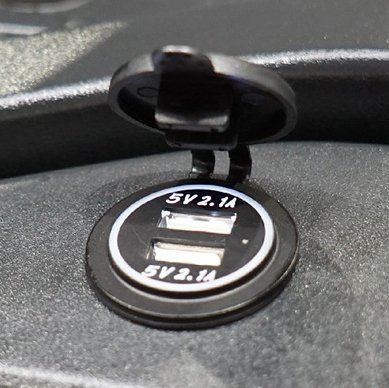

• USB Port for operator device charging

Operator Comfort & Safety

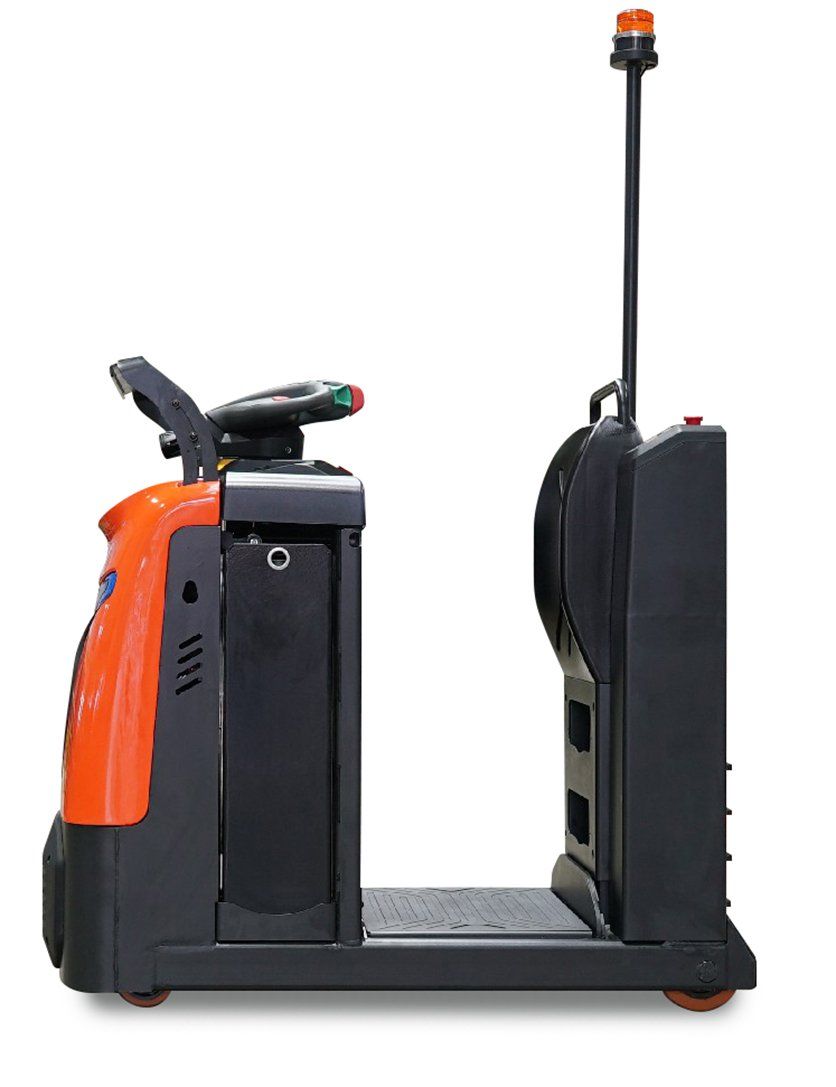

• Stand-On Rider Platform

• Crawl Speed Button

• Emergency Power Disconnect

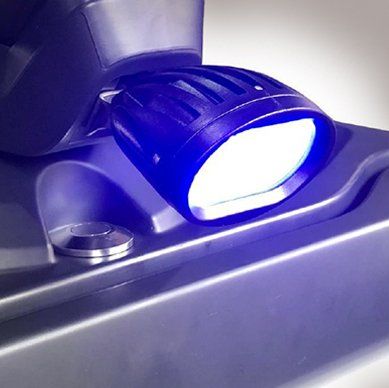

• Blue Light + Strobe Light

• Smart Handle Keyless Pin-Code Access

• Reinforced Couplers with 3 height adjustments

• Platform Tray for storage

Standard Configuration

ZAPI Italian controller, German Schabmueller AC drive motor, German Kordel gearbox, 24V industrial battery (375Ah on T66N / 465Ah on T110N), 24V/60A 110V charger, German polyurethane drive tire, polyurethane 7.1"×3" rear wheels, EPS, smart handle with keyless pin-code + LCD, reinforced couplers (3 heights), crawl speed and jog buttons, emergency power disconnect, blue light + strobe light, USB port, platform tray, 52.5" turning radius.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
