T66Q / T130Q Sit-Down Lithium Tow Tractors

Overview

The T66Q / T130Q Sit-Down Lithium Tow Tractors are Noblelift premium sit-down rider tugger platform with 48V high-performance AC drive motor, Curtis CAN-bus controller, factory-installed 48V/300Ah industrial lithium battery, seat with armrests, and shock-absorption axles. 3-Year Limited Warranty.

High-Capacity and Powerful

• Sit-down rider operator station with seat and armrests

• Compact size - 74" L × 39" W × 62" H

• Small turning radius - Wa-1590mm

• 48V high-performance AC drive motor

• Industrial lithium battery standard - 48V/300Ah

• Top speed: 8.75 mph unloaded / 5 mph loaded

• Reinforced traction couplers with 3 adjustable heights

Model Variants

• T66Q - 6,600 lb (3T) drawbar, 2,376 lb ship weight, 62" turning radius, $20,600

• T130Q - 13,000 lb (6T) drawbar, 2,739 lb ship weight, 66" turning radius, $21,900

Curtis Drivetrain

• Curtis Controller with CAN-bus Control

• 48V High-Performance AC Drive Motor

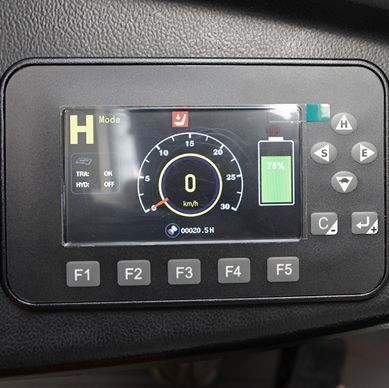

• Multi-Functional Instrument: battery, travel speed, fault codes

• Pin Code Panel - multi-user access control

• AC Power with Aviation Plug

Industrial Lithium Battery — Standard

48V/300Ah industrial lithium battery standard. No watering, no maintenance, no off-gassing. Fast opportunity charging supports 24/7 multi-shift operation. Premium 48V voltage class delivers uncompromised travel performance under heavy drawbar loads.

Operator Comfort & Ergonomics

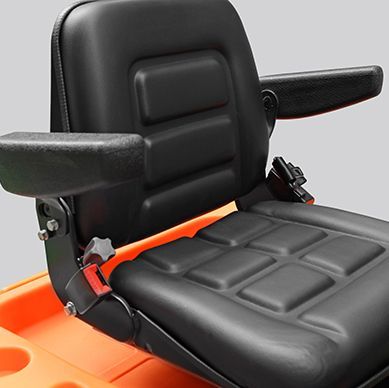

• Seat with Armrests

• Spacious Driving Space with Rubber Pedals

• Shock-Absorption Design on both front and rear axles

• Coasting Buttons - convenient trailer connection without leaving the seat

• Dual Rear-View Mirrors

Compact Footprint

• Overall Length: 74 in

• Overall Width: 39 in (fits standard doorways)

• Overall Height: 62 in

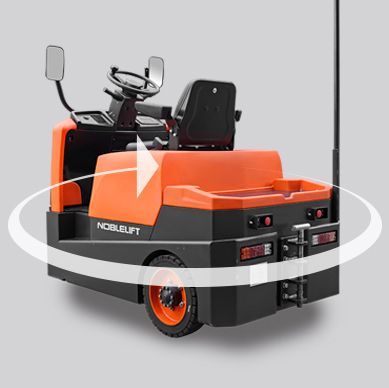

• Turning Radius: 62 in (T66Q) / 66 in (T130Q) - Wa-1590mm

Tires

Solid Rubber 4.00-8 drive and steer tires. Eliminates flat-tire downtime, reliable traction on indoor concrete, dock plates, and outdoor smooth surfaces.

Safety Features

• Standard Blue Light - activated while driving or steering

• Warning Lights - visible from all sides

• Pin Code Panel - multi-user authorization

• Reinforced Traction Couplers with 3 height adjustments

• Multi-Functional Instrument - battery, speed, fault codes

Standard Configuration

48V/300Ah industrial lithium battery, 48V high-performance AC drive motor, Curtis CAN-bus controller, seat with armrests, shock-absorption design (front and rear), reinforced traction couplers (3 heights), spacious driving space with rubber pedals, 74"×39"×62" overall, Wa-1590mm turning radius, dual rear-view mirrors, coasting buttons, blue light + warning lights, solid rubber 4.00-8 tires, AC power with aviation plug, pin code panel.

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, on-site training, and nationwide field support available through PHS Lift dealer network.
