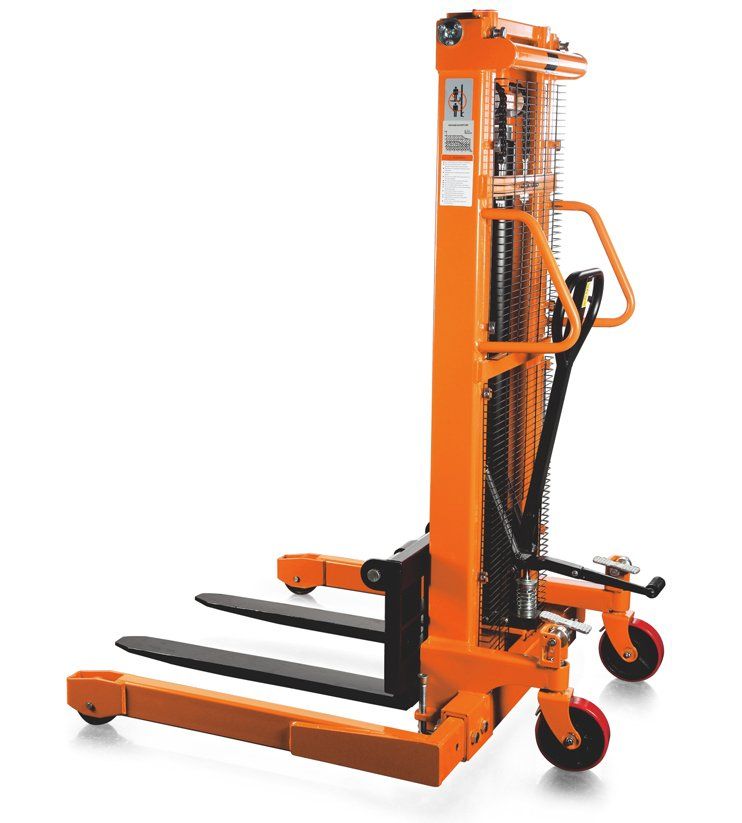

SFH22 Manual Stacker Series

An economic choice for light-duty stacking and pallet positioning applications. The SFH22 series is manually propelled and manually lifted, with three lift-height variants sharing a 2,200 lb capacity, adjustable straddle base, and a wide fork-spread range — giving operators the right tool for general material handling without the cost of powered equipment.

Variant Comparison

• SFH22-63 — 63" lift, 1-stage mast, 80" LMH, 750 lb ship weight, MSRP $1,900.

• SFH22-98 — 98" lift, 2-stage mast, 70" LMH, 840 lb ship weight, MSRP $2,200.

• SFH22-118 — 118" lift, 2-stage mast, 80" LMH, 900 lb ship weight, MSRP $2,300.

Standard Features

• Manually propelled and manually lifted — no battery, no charging

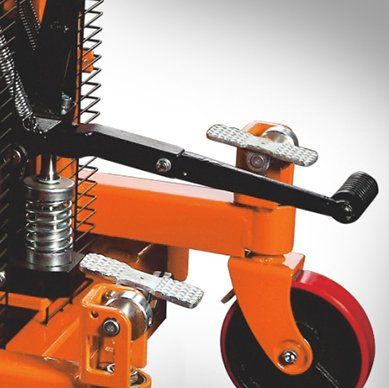

• Lift via foot pedal or hand pump on the handle

• 3-position adjustable straddle legs (set at minimum for shipping)

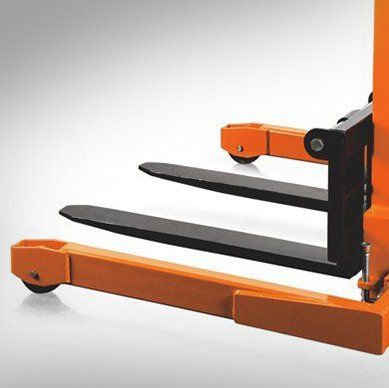

• Adjustable base legs — I.D. 36"–48" / O.D. 43"–54"

• 36" forks with 8.5"–33.5" O.D. spread adjustment

• Minimum fork height 2.75"

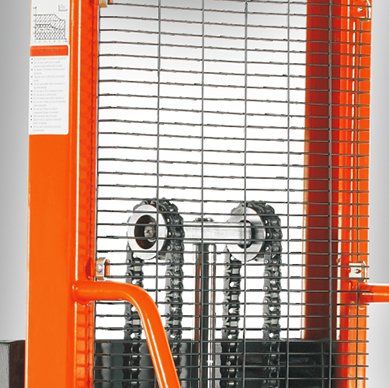

• Operator protection screen

• Dual push handles mounted at comfort height on the mast

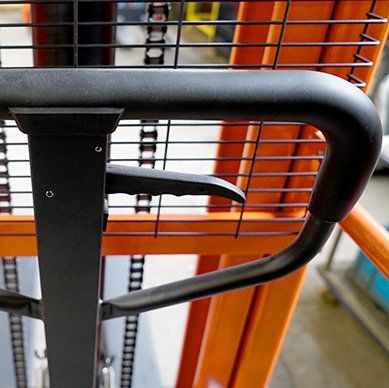

• Ergonomic spring-loaded steering handle with comfort grip

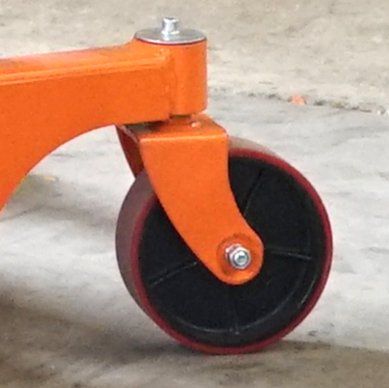

• 2 polyurethane swivel castors

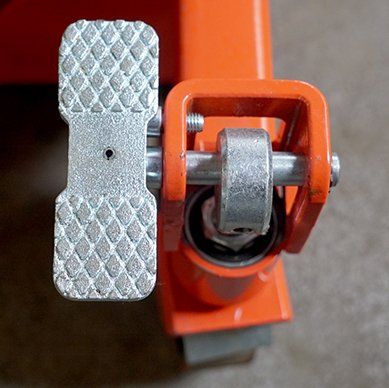

• Foot-pedal parking brake

Configuration Options

• Fully Assembled — ship the unit fully built rather than knock-down (+$200, any variant)

• Fork-Over Type — alternate fork-over base (+$300)

• Fixed Straddle Base — non-adjustable straddle (+$300)

• Platform Lift — platform lift base in place of forks (+$300)

Ideal Applications

• Light-duty stacking up to 2,200 lb

• Pallet positioning and load transfers

• Small warehouses, retail stockrooms, parts and tool cribs

• Maintenance shops and seasonal high-bay tasks

Warranty & Support

1-Year Limited Parts-Only Warranty. PHS Lift dealer network provides parts, accessories, and operator guidance nationwide. Note: the SFH22 carries a 1-year parts warranty rather than the 3-year warranty found on PHS Lift powered equipment.
