PS30CB / PS40CB Electric Counterbalanced Stacker Series

Overview

The PS30CB / PS40CB Series is Noblelift heavy-duty electric counterbalanced stacker line - a step up from the walkie PSE11N-CB. Available in 3,000 lb and 4,000 lb capacities with fourteen mast configurations spanning 98" to 177" of lift, combining ZAPI/Schabmueller European drivetrain, ride-on platform, and full counterbalanced operation.

Counterbalanced Design

• No straddle legs - works with closed-bottom pallets, drums, IBCs, custom skids, dunnage

• Direct rack access - no leg clearance against rack face

• Tighter aisle requirements than equivalent-capacity straddle stackers

• Ride-on platform - operator stands on unit for long shifts

PS30CB Variants (3,000 lb)

• PS30CB-98 - 98" lift, 2-stage

• PS30CB-118 - 118" lift, 2-stage

• PS30CB-126 - 126" lift, 2-stage

• PS30CB-142 - 142" lift, 3-stage FFL

• PS30CB-157 - 157" lift, 3-stage FFL

• PS30CB-169 - 169" lift, 3-stage FFL

• PS30CB-177 - 177" lift, 3-stage FFL

PS40CB Variants (4,000 lb)

• PS40CB-98 - 98" lift, 2-stage

• PS40CB-118 - 118" lift, 2-stage

• PS40CB-126 - 126" lift, 2-stage

• PS40CB-142 - 142" lift, 3-stage FFL

• PS40CB-157 - 157" lift, 3-stage FFL

• PS40CB-169 - 169" lift, 3-stage FFL

• PS40CB-177 - 177" lift, 3-stage FFL

European Drivetrain & Build Quality

• ZAPI Controller (Italy) for reliability and programmable performance

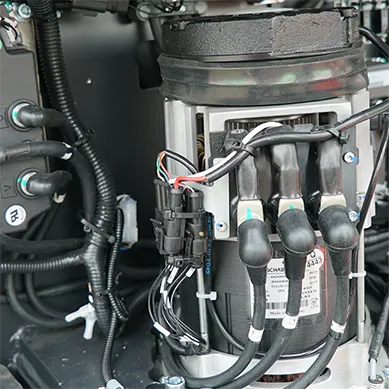

• German Schabmueller AC drive motor - high torque, low maintenance

• German Kordel sealed gearbox - lifetime lubrication

• Electric Power Steering (EPS) standard

• Proportional hydraulic lifting for precise placement

• Mast tilt 1.5° F / 3.5° B

Full Free Lift on 3-Stage Masts

Full Free Lift is standard on all 3-stage variants (142, 157, 169, 177) at no additional cost. Available as a +$225 upgrade on 2-stage variants (98, 118, 126). FFL allows the inner mast and forks to rise to a usable height before the outer mast extends - critical for stacking inside trailers, containers, and mezzanines.

Battery & Lithium Upgrade

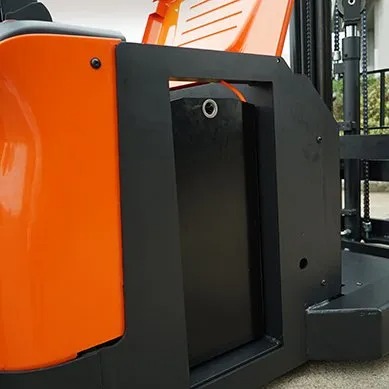

PS30CB ships with a 24V/270Ah industrial battery (side extraction); PS40CB ships with a 24V/350Ah industrial battery (side extraction). Lithium upgrades: PS30CB = 150Ah LFP + 60A charger (+$3,400); PS40CB = 200Ah LFP + 80A charger (+$4,200).

Ride-On Platform

The defining feature versus the walkie PSE11N-CB: the PS30CB/PS40CB includes a ride-on operator platform with protective arms, allowing the operator to stand on the unit during travel. This reduces fatigue on long shifts and increases throughput in distribution-center applications.

Operator Controls & Safety

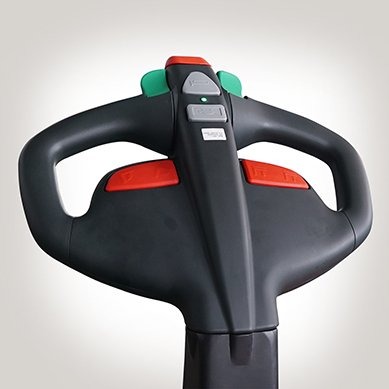

• Ergonomic control handle with horn and reverse button

• Dual butterfly-style thumb controls

• Crawl speed button for tight spaces

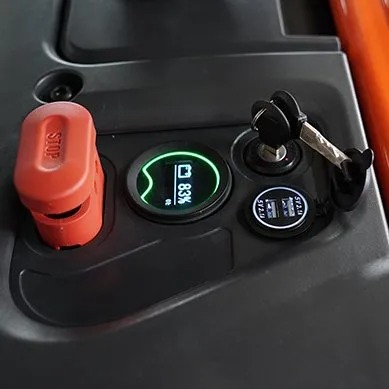

• Pin code panel access

• USB Port for scanner/device charging

• Emergency power disconnect

• Standard load backrest

• Protective arms on ride-on platform

Performance & Fork Options

PS30CB: 4.4 mph loaded / 5.0 mph unloaded. PS40CB: 3.75 mph loaded / 4.4 mph unloaded. Standard 42" forks; optional 48" (+$150), 54" (+$200), or 60" (+$250). 9.8" x 3.3" drive tire, 9" x 3.9" load wheels.

Optional Upgrades

• Full Free Lift (2-stage variants only) - +$225

• PS30CB Lithium Upgrade (150Ah LFP + 60A charger) - +$3,400

• PS40CB Lithium Upgrade (200Ah LFP + 80A charger) - +$4,200

• Fork Length 48" - +$150

• Fork Length 54" - +$200

• Fork Length 60" - +$250

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, and structural components. Lithium battery upgrades carry a separate manufacturer warranty (typically 5 years / 3,000 cycles). Extended service plans, on-site training, and nationwide field support are available through PHS Lift dealer network.
