PSE11CB Lithium Counterbalanced Stacker Series

Overview

The PSE11N-CB Series is a purpose-built lithium-powered mini-counterbalanced electric stacker designed for mezzanine applications, retail backrooms, light manufacturing, and tight-aisle warehousing where the floor space and overhead clearance will not accommodate a straddle stacker. With 1,100 lb load capacity and four mast configurations spanning 62" to 126" of lift.

What is a Counterbalanced Stacker?

Unlike straddle stackers which rely on outboard straddle legs that extend beneath the pallet for stability, a counterbalanced stacker carries the load entirely forward of the wheels - balanced by the weight of the chassis and battery behind the operator.

• No straddle legs - works with closed-bottom pallets, custom skids, drums, IBCs, and dunnage

• Mezzanine compatible - drives directly onto mezzanine surfaces without leg interference

• Tighter aisle requirements - narrower turning radius than a straddle stacker

• Direct rack access - no straddle clearance needed against the rack face

Model Variants

• PSE11N-CB-62 - 62" lift, 1-stage, 77.2" LMH, 2,497 lb

• PSE11N-CB-102 - 102" lift, 2-stage, 71.7" LMH, 2,541 lb

• PSE11N-CB-114 - 114" lift, 2-stage, 77.2" LMH, 2,585 lb

• PSE11N-CB-126 - 126" lift, 2-stage, 83.1" LMH, 2,629 lb

Lithium Battery & Fast Charging

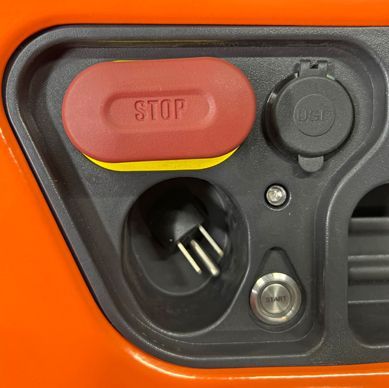

The PSE11N-CB is lithium-native: 24V/60Ah Lithium battery with integrated BMS, built-in 24V/25A 110V charger, fast-charge capability for opportunity charging during breaks, 3,000+ cycle life with zero maintenance, and plug-and-play charging at any standard outlet. Critical for mezzanine deployments where a battery room and high-amp charger infrastructure is rarely available.

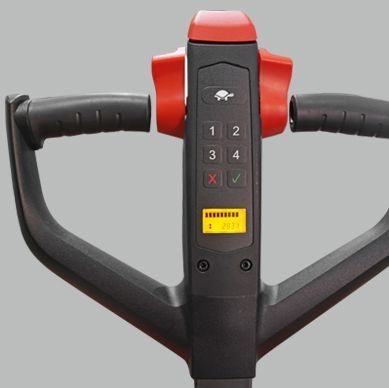

Operator Controls & Smart Handle

• Keyless pin-code panel for quick operator authentication

• RFID card access for badge-tap login

• LCD display showing battery state-of-charge and hour meter

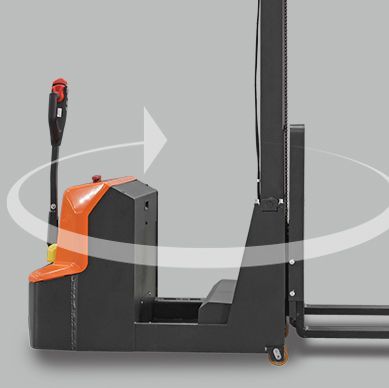

• Pinwheel turning for tight 90 degree corners

Drivetrain & Performance

Curtis CAN-bus controller, 24V DC permanent magnetic drive motor, centered drive motor for stability, 2.9 mph unloaded / 2.8 mph loaded travel speed, speed reduction in turns standard, 9" x 2.95" polyurethane drive tire, 3.3" x 2.8" polyurethane load wheels.

Mezzanine Application Notes

• Light service weight (2,497-2,629 lb) stays within mezzanine load ratings

• Compact footprint fits standard mezzanine elevator car dimensions

• No straddle legs means no clearance issues at mezzanine edge protection or column bases

• Plug-in charging at any 110V outlet - no infrastructure upgrade required

• Quiet electric operation acceptable in office-adjacent mezzanines and showroom-level storage

Safety Features

• Operator protection plexiglass

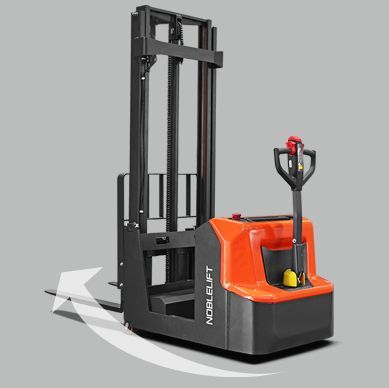

• Speed reduction in turns

• Standard load backrest

• Emergency reverse button

• Keyless pin-code + RFID access

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, lithium battery, and structural components. Extended service plans and nationwide field support are available through PHS Lift dealer network.
