PS35TSL, PS40TSLElectric Stacker Series

Overview

The PS35TSL / PS40TSL Series is Noblelift's professional heavy-duty walkie straddle stacker line, engineered for industrial warehouses, distribution centers, and manufacturing facilities that demand the ergonomics of a walkie stacker with the throughput capacity normally reserved for sit-down riders. Available in two capacity classes (3,500 lb and 4,000 lb) and eleven mast configurations spanning 113.25" to 206" of lift.

PS35TSL Variants (3,500 lb)

• PS35TSL-114 - 113.25" lift, 2-stage

• PS35TSL-126 - 124" lift, 2-stage

• PS35TSL-157 - 155" lift, 3-stage FFL

• PS35TSL-169 - 167" lift, 3-stage FFL

• PS35TSL-181 - 179" lift, 3-stage FFL

• PS35TSL-208 - 206" lift, 3-stage FFL

PS40TSL Variants (4,000 lb)

• PS40TSL-114 - 113.25" lift, 2-stage

• PS40TSL-126 - 124" lift, 2-stage

• PS40TSL-157 - 155" lift, 3-stage FFL

• PS40TSL-169 - 167" lift, 3-stage FFL

• PS40TSL-181 - 179" lift, 3-stage FFL

European Drivetrain & Industrial Build Quality

• ZAPI Controller (Italy) for reliability and programmable performance

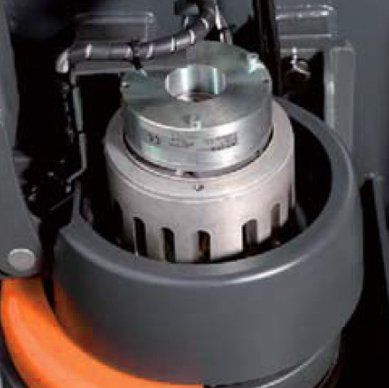

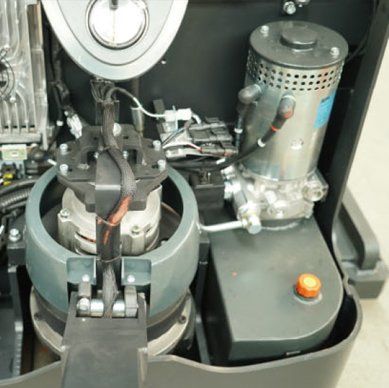

• German AC drive motor with sealed gearbox - high torque, lifetime lubrication

• Steel grill operator protection (industrial grade)

• Side-shift standard - repositions the load laterally without repositioning the unit

• Proportional lift control for precise pallet placement

Full Free Lift (FFL) on 3-Stage Masts

Full Free Lift is standard on all 3-stage mast variants (157, 169, 181, 208) at no additional cost. FFL allows the inner mast and forks to rise to a usable height before the outer mast extends, enabling stacking inside trailers, containers, mezzanines, and other low-overhead environments. Available as a +$350 upgrade on 2-stage variants (114, 126).

Battery & Lithium Upgrade

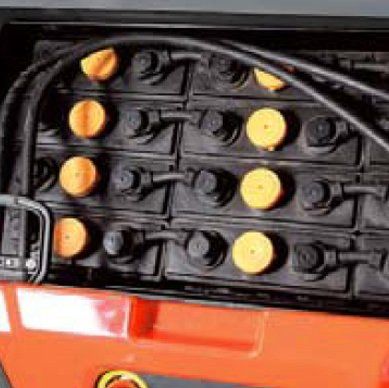

PS35TSL ships with a 24V/270Ah industrial battery; PS40TSL ships with a 24V/350Ah industrial battery. Lithium upgrade options: PS35TSL = 150Ah LFP + 60A charger (+$500); PS40TSL = 200Ah LFP + 80A charger (+$600). Lithium eliminates watering, reduces charging time, and extends runtime.

Operator Controls & Safety

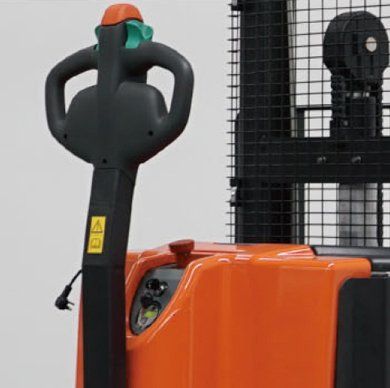

• Ergonomic control handle with horn and reverse button

• Dual butterfly-style thumb controls

• Crawl speed button for tight spaces

• Key switch limits access

• Emergency power disconnect

• Steel grill operator protection

• Standard load backrest and stability casters

Performance

Travel speed: 3.4 mph unloaded / 3.7 mph loaded - the fastest walkie stacker in the line. Adjustable base legs: I.D. 38"-50", O.D. 46"-58". Class II forks 42"L x 10-28.7"W. 9" x 2.95" polyurethane drive tire and 3.3" x 3.3" load wheels.

Optional Upgrades

• Full Free Lift (2-stage variants only) - +$350

• PS35TSL Lithium Upgrade (150Ah LFP + 60A charger) - +$500

• PS40TSL Lithium Upgrade (200Ah LFP + 80A charger) - +$600

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, and structural components. Lithium battery upgrades carry a separate manufacturer warranty (typically 5 years / 3,000 cycles). Extended service plans, on-site training, and nationwide field support are available through PHS Lift dealer network.
