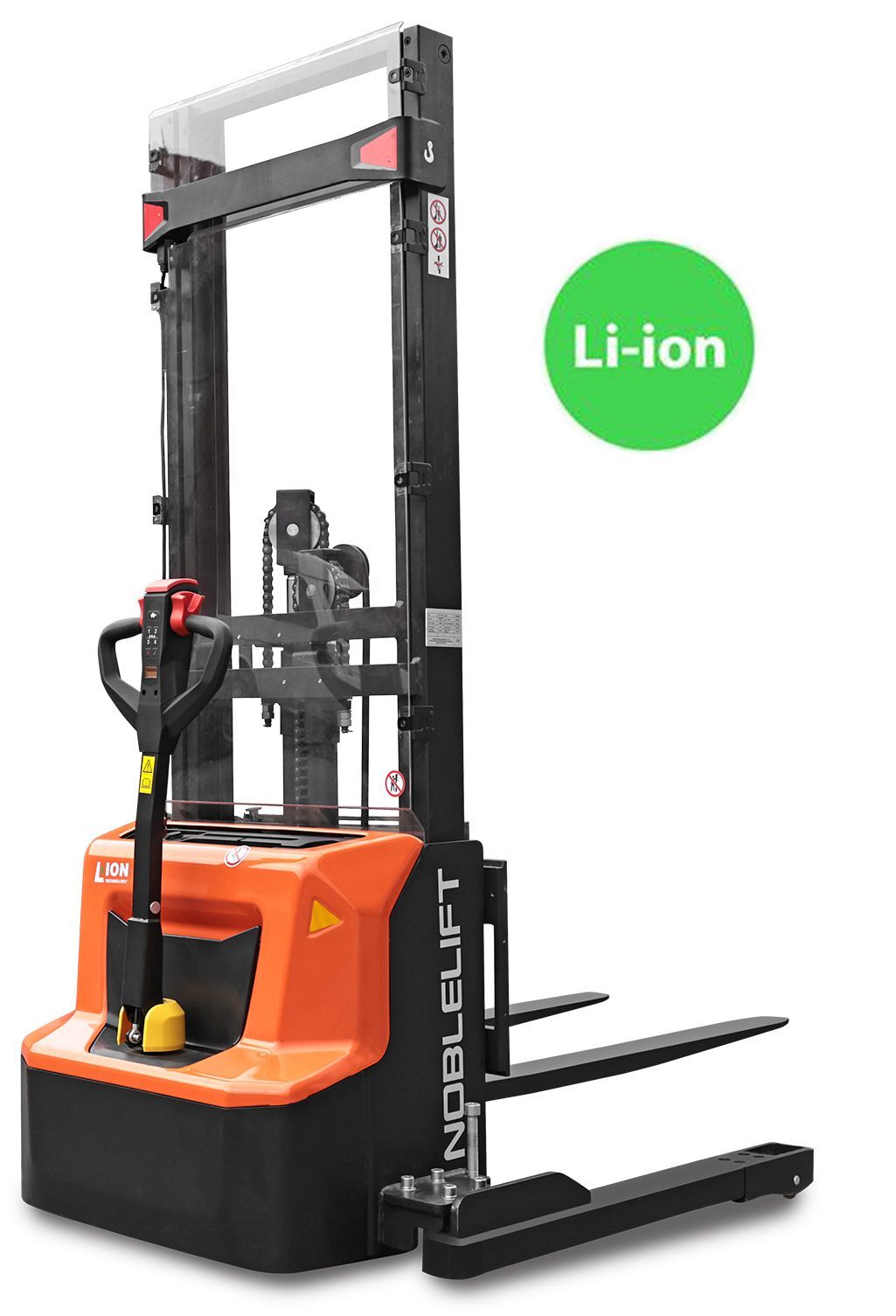

PSX30Lithium Walkie Straddle Stacker Series

Overview

The PSX30 "EDGE ELITE" is a premium lithium-powered electric walkie straddle stacker featuring Full Free Lift capability — the defining feature that separates the EDGE ELITE class from the standard PSE-series. Full Free Lift allows the operator to raise the forks to a usable height without raising the outer mast, enabling stacking inside trucks, containers, mezzanines, and other low-overhead environments.

Model Variants

• PSX30-100 - 100" lift, 70.5" LMH, 1,810 lb

• PSX30-112 - 110" lift, 76.4" LMH, 1,839 lb

• PSX30-124 - 122" lift, 82.3" LMH, 1,867 lb

• PSX30-140 - 138" lift, 90.2" LMH, 1,907 lb

What is Full Free Lift?

Full Free Lift (FFL) is a premium mast configuration that allows the inner mast and forks to rise to a usable height before the outer mast extends. On the PSX30, this means stacking inside trailers and containers without hitting the ceiling, loading and unloading at dock-height without telescoping the mast, better forward visibility during low-height stacking operations, and reduced lowered-mast-height (LMH) for low-clearance doorways.

Lithium Battery & Charging

The PSX30 "EDGE ELITE" is lithium-native with the largest standard battery in its class: 24V/100Ah Lithium with BMS, built-in 24V/25A 110V charger, 3,000+ cycle life with zero maintenance, and plug-and-play charging at any standard outlet. The larger lithium pack delivers extended runtime for high-cycle 3-shift operations.

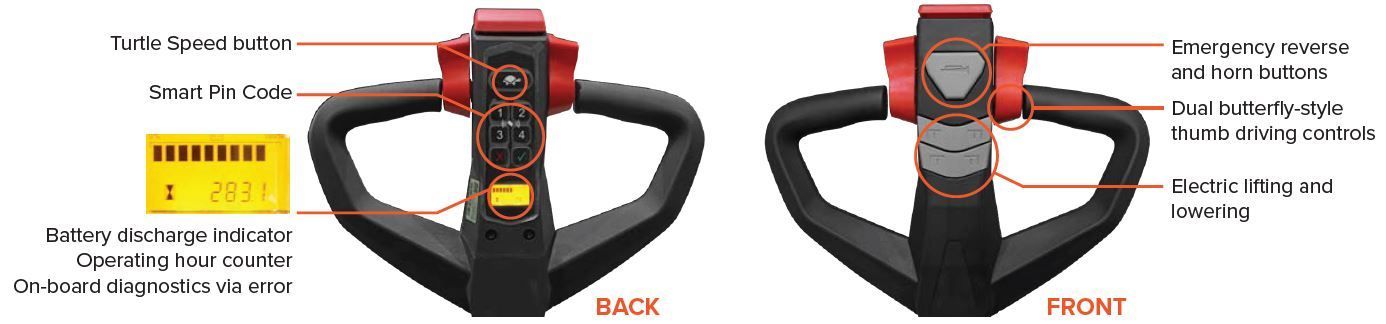

Operator Controls & Smart Handle

• Keyless pin-code panel for quick operator authentication

• RFID card access for badge-tap login

• LCD display showing battery state-of-charge, hour meter, and fault codes

• Pinwheel turning - drive with the tiller in vertical position for tight 90 degree corners

• USB connector for scanner or device charging

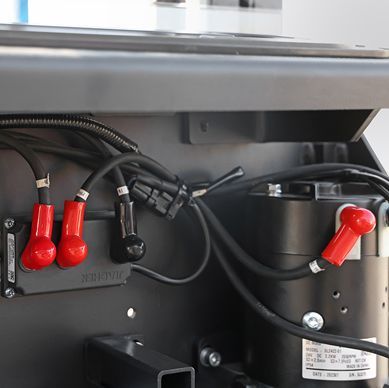

Drivetrain & Performance

Curtis CAN-bus controller, 24V DC permanent magnetic drive motor, centered drive motor for stability, 2.6 mph unloaded / 2.8 mph loaded travel speed, and speed reduction in turns standard.

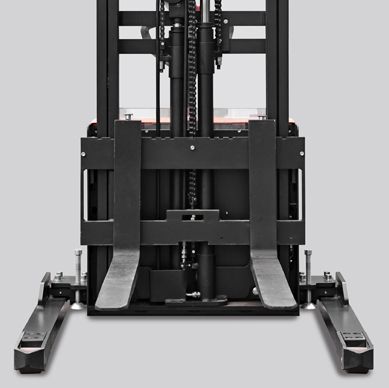

Adjustable Straddle Design

Adjustable base legs accommodate I.D. 38.62"-50.43" and O.D. 46.5"-58.31", suitable for GMA pallets, custom pallets, plastic skids, and dunnage racks.

Safety Features

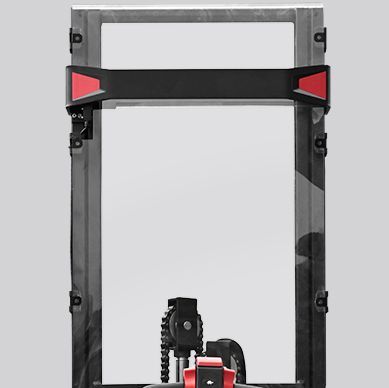

• Operator protection plexiglass

• Stability casters standard

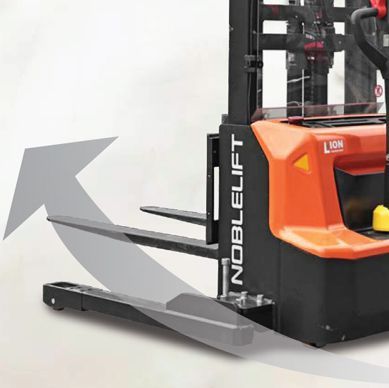

• Speed reduction in turns

• Standard load backrest

• Emergency reverse button

• Keyless pin-code + RFID access

Optional Upgrades

• Traction Tire - +$250

• Fork-Over Type - +$300

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, lithium battery, and structural components. Extended service plans and nationwide field support are available through PHS Lift dealer network.
