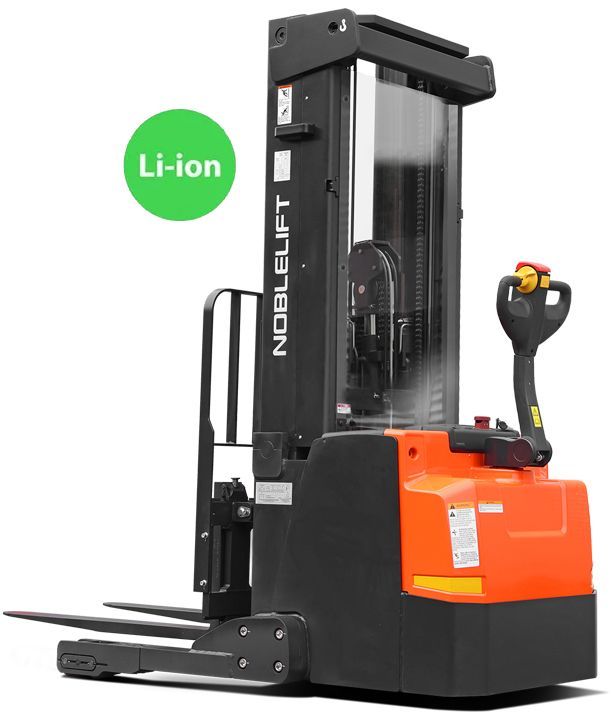

PSR30 Lithium - Walkie Reach Truck

Overview

The PSR30 Pantograph Walkie Reach Truck fills a unique niche - combining the ergonomics and floor-space efficiency of a walkie stacker with the 22.6" pantograph reach normally found only on stand-up reach trucks. With 3,000 lb load capacity and five mast configurations spanning 106" to 189" of lift, the PSR30 delivers true reach-truck functionality in a walkie footprint.

Model Variants

• PSR30-106 - 106" lift, 2-stage, 73.1" LMH, 4,045 lb

• PSR30-126 - 126" lift, 2-stage, 83.0" LMH, 4,127 lb

• PSR30-157 - 157" lift, 3-stage, 76.4" LMH, 4,684 lb

• PSR30-177 - 177" lift, 3-stage, 83.0" LMH, 4,772 lb

• PSR30-189 - 189" lift, 3-stage, 87.0" LMH, 4,827 lb

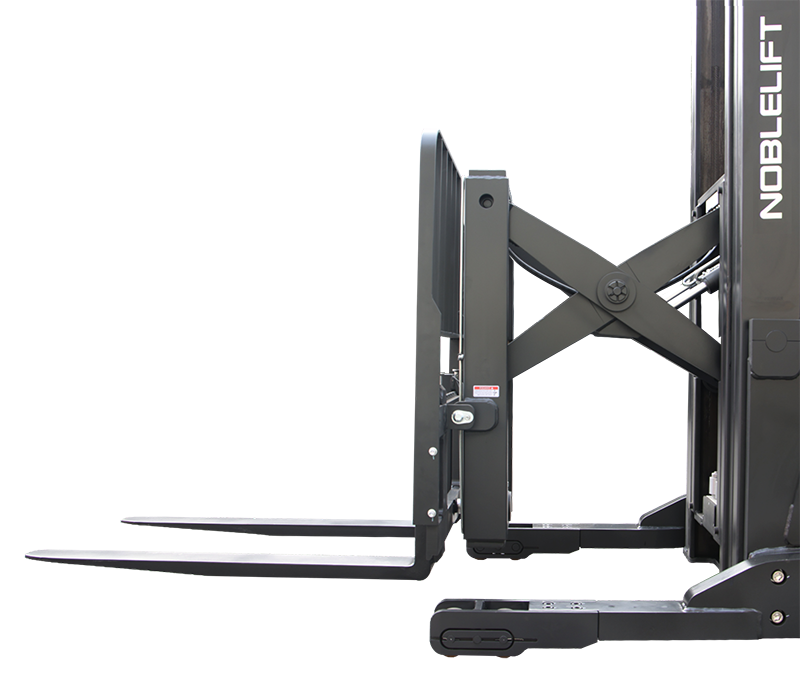

Pantograph Reach Mechanism

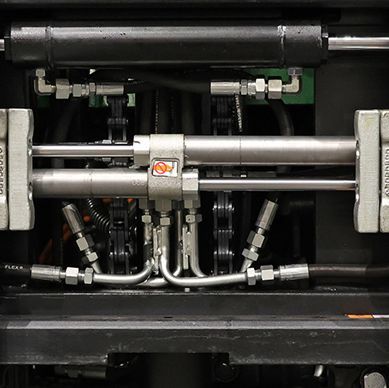

The defining feature of the PSR30 is its 22.6" pantograph reach - a scissor-style extension that pushes the forks outward beyond the straddle legs to access the second pallet position in standard rack. Combined with the integrated side-shifter and tilt, the operator can reach into pallet rack without repositioning, side-shift the load laterally, tilt the forks for transport stability, and stack double-deep. Driven by double hydraulic cylinders for balanced extension under load.

Lithium Battery & Charging

The PSR30 is lithium-native: 24V/200Ah Lithium battery with integrated BMS, built-in 24V/50A charger, 3,000+ cycle life with zero maintenance, plug-and-play charging at any 110V outlet.

Drivetrain & Performance

• AC drive motor 2.6 kW

• High-power pump unit 4.5 kW

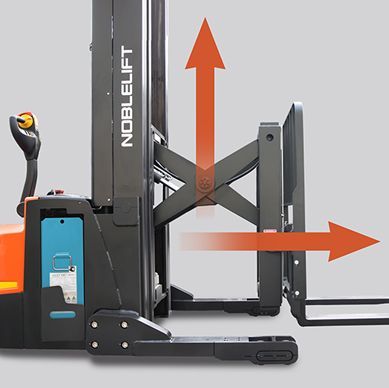

• Proportional hydraulics for all functions

• Travel speed: 3.4 mph loaded / 3.7 mph unloaded

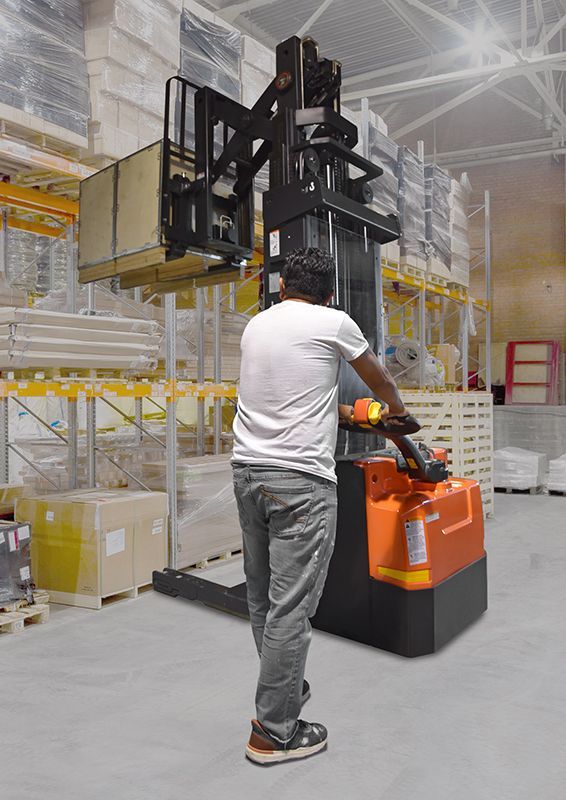

• Moonwalk function with magnetic power system

• Brake override for turtle-speed travel with upright tiller

Operator Controls & Ergonomics

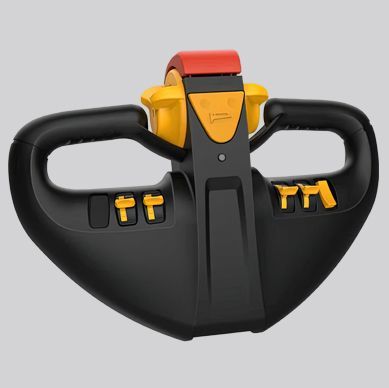

• Ergonomic control head with all controls in the handle

• Electronic Power Steering (EPS) standard

• Battery discharge indicator with hour meter and travel-speed display

• USB power socket for scanner or device charging

• On-board diagnostics and fault-code indicator

• Plexiglass mast guard and load back rest

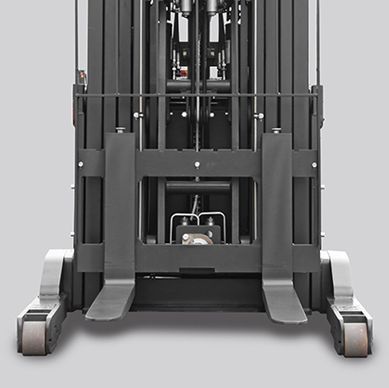

Adjustable Straddle Legs

Standard 34" I.D. / 42.25" O.D. straddle legs. Optional spacer kits expand the straddle width: 38"/42" I.D. spacers (+$250/set of 2) or 46"/50" I.D. spacers (+$400/set of 2).

Optional Upgrades

• Straddle Leg Spacers (38" or 42" I.D.) - Set of 2 - +$250

• Straddle Leg Spacers (46" or 50" I.D.) - Set of 2 - +$400

• Alternative Battery and Charger Options - Call for quote

• Single 10" Diameter Poly Straddle Leg Wheels - Call for quote

• Traction Drive Tire - Call for quote

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, lithium battery, and structural components. Extended service plans, on-site training, and nationwide field support are available through PHS Lift dealer network.
