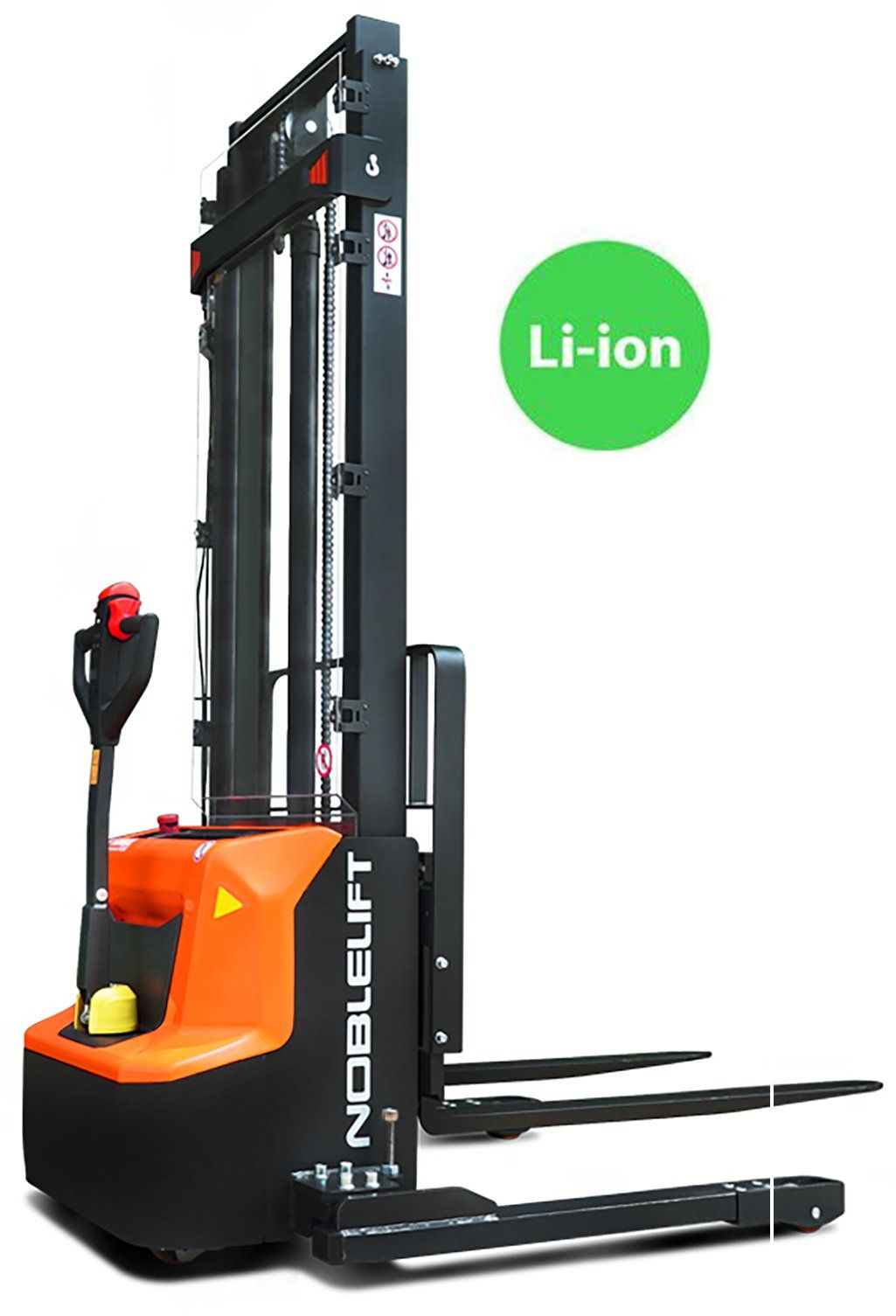

PSE26N SLLithium Electric Stacker Series

Overview

The PSE26N "EDGE" is a lithium-powered electric walkie straddle stacker engineered for warehouses, retail backrooms, and light-industrial operations that demand reliable stacking up to 140" without the maintenance overhead of lead-acid batteries. With a 2,600 lb load capacity and four lift-height options, the PSE26N "EDGE" combines lithium battery efficiency with premium operator-experience features including RFID card access, keyless pin-code entry, and an LCD smart handle.

Model Variants

• PSE26N-74 - 74.75" lift, 57"

• PSE26N-114 - 113.25" lift, 76.2"

• PSE26N-124 - 124" lift, 83"

• PSE26N-140 - 140" lift, 88"

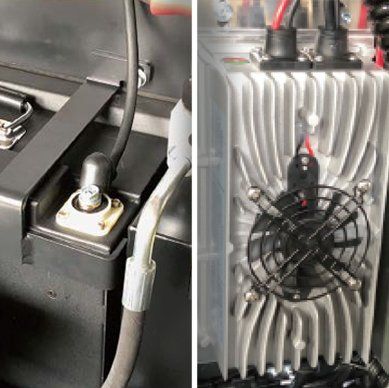

Lithium Battery & 2-Hour Fast Charging

The PSE26N "EDGE" is lithium-native - no AGM upgrade required. Standard equipment includes a 24V/60Ah lithium battery with integrated BMS, a built-in 24V/25A 110V charger, 2-hour fast-charge capability for opportunity charging during breaks, 3,000+ cycle life with zero maintenance, and plug-and-play charging at any standard outlet.

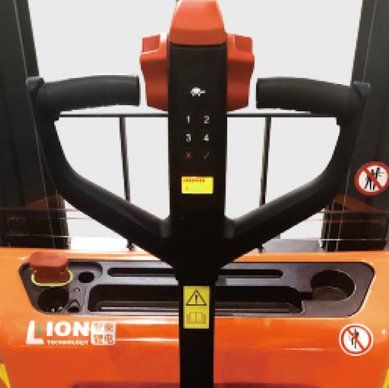

Operator Controls & Smart Handle

• Keyless pin-code panel for quick operator authentication

• RFID card access for badge-tap login

• LCD display showing battery state-of-charge, hour meter, and fault codes

• Pinwheel turning - drive with the tiller in vertical position for tight 90 degree corners

• USB connector for scanner or device charging

Drivetrain & Performance

Curtis CAN-bus controller, 24V DC permanent magnetic drive motor, centered drive motor for stability, 2.6 mph unloaded / 2.8 mph loaded travel speed, and speed reduction in turns standard.

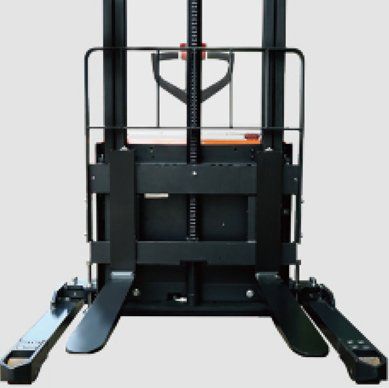

Adjustable Straddle Design

Adjustable base legs accommodate I.D. 38.6"-50" and O.D. 46.2"-58", suitable for GMA pallets, custom pallets, plastic skids, and dunnage racks.

Safety Features

• Operator protection plexiglass

• Stability casters standard

• Speed reduction in turns

• Standard load backrest

• Emergency reverse button

• Keyless pin-code + RFID access

Optional Upgrades

• Fork-Over Type - +$300

• Traction Tire - +$250

Warranty & Support

Backed by a 3-Year Limited Warranty covering parts and labor on the drivetrain, electrical system, lithium battery, and structural components. Extended service plans and nationwide field support are available through PHS Lift dealer network.
