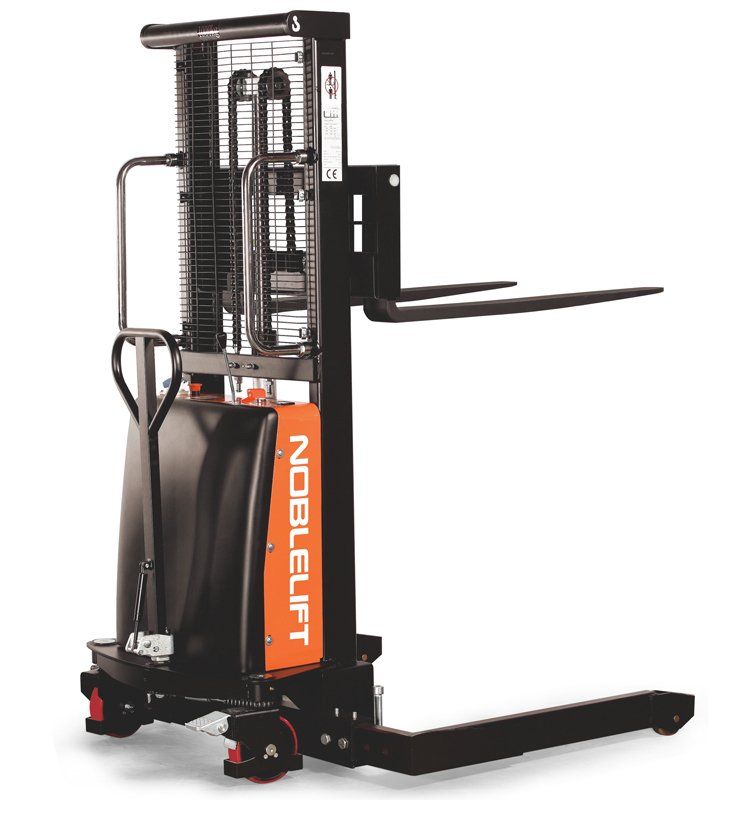

SPN22 Semi-Electric Stacker Series

The choice for light-duty stacking and pallet positioning. The SPN22 is manually propelled with power lifting — operators push the unit by hand and use a dash-mounted lever to raise or lower the load, eliminating manual pumping while keeping the cost and footprint well below a fully powered walkie. Four lift-height variants share a 2,200 lb capacity, an adjustable straddle base, and a 12V/100Ah deep-cycle battery with built-in charger.

Variant Comparison

• SPN22-63 — 63" lift, 1-stage mast, 80" LMH, 830 lb ship weight, MSRP $4,000.

• SPN22-98 — 98" lift, 2-stage mast, 72" LMH, 990 lb ship weight, MSRP $4,100.

• SPN22-118 — 118" lift, 2-stage mast, 82" LMH, 1,050 lb ship weight, MSRP $4,200.

• SPN22-138 — 138" lift, 2-stage mast, 89.5" LMH, 1,120 lb ship weight, MSRP $4,300.

Standard Features

• Manually propelled with power lifting

• Lift / lower lever control mounted on the dash

• 3-position adjustable straddle legs

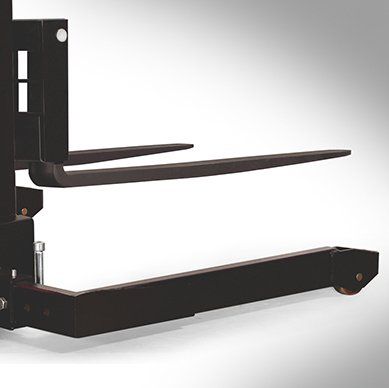

• Adjustable base legs — I.D. 38"–50" / O.D. 46"–58"

• 42" forks with 8.3"–28.3" O.D. spread adjustment

• Battery gauge and on/off key switch

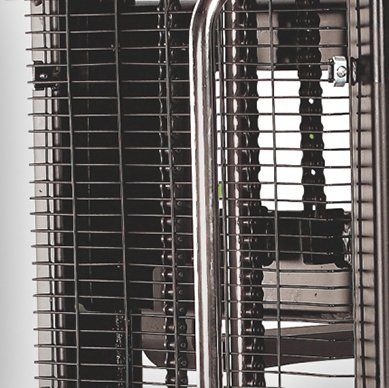

• Operator protection screen

• Dual push handles mounted at comfort height on the mast

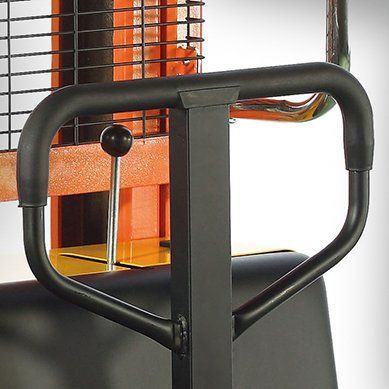

• Ergonomic spring-loaded steering handle with comfort grip

• Polyurethane load rollers and easy-steer swivel casters

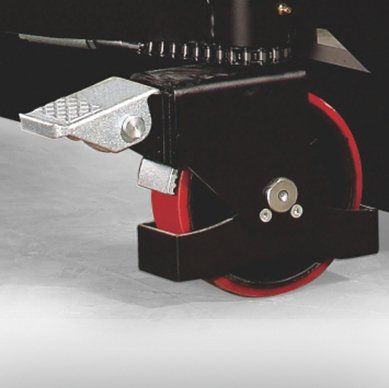

• Foot-pedal parking brake

Battery & Charger

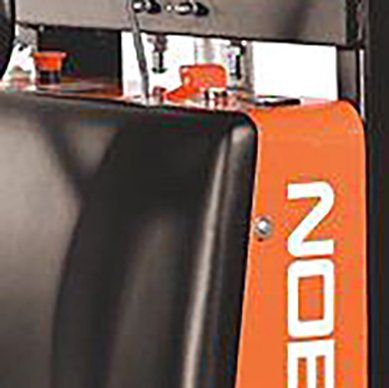

Standard: 12V / 100Ah maintenance-free deep-cycle battery with a built-in 12V / 10A 110V charger. The on-board charger plugs into any standard 110V wall outlet — no external charger or specialized circuit required.

Configuration Options

• Fully Assembled — ship the unit fully built rather than knock-down (+$200, any variant)

• Fork-Over Type — alternate fork-over base (+$300)

• Fixed Straddle Base — non-adjustable straddle (+$300)

Comparison with SFH22 Manual Stacker

• Lift mechanism: SPN22 power lift (lever on dash) vs SFH22 manual hand-pump or foot-pedal

• Propulsion: both manually propelled

• Forks: SPN22 42" long, 8.3"–28.3" O.D. vs SFH22 36" long, 8.5"–33.5" O.D.

• Base: SPN22 I.D. 38"–50" / O.D. 46"–58" vs SFH22 I.D. 36"–48" / O.D. 43"–54"

• Power: SPN22 12V/100Ah deep-cycle + built-in 110V charger vs SFH22 no battery

• Lift heights: SPN22 adds 138" option (4 variants) vs SFH22 capped at 118" (3 variants)

• MSRP: SPN22 $4,000–$4,300 vs SFH22 $1,900–$2,300 — power-lift premium ~$2,000

Ideal Applications

• Light-duty stacking up to 2,200 lb with frequent lift cycles

• Pallet positioning at racking heights up to 138 in

• Small warehouses, retail stockrooms, parts and tool cribs

• Maintenance shops, e-commerce fulfillment, and seasonal high-bay tasks

Warranty & Support

1-Year Limited Parts-Only Warranty. PHS Lift dealer network provides parts, accessories, and operator guidance nationwide. Note: the SPN22 carries a 1-year parts warranty rather than the 3-year warranty found on PHS Lift fully powered equipment.
