PT55L Electric Pallet Truck
PT55L SERIES — medium-to-heavy duty 5,500 lb electric walkie pallet jack. ZAPI controller, German Schabmueller AC drive, German Kordel gearbox, 24V/350Ah AGM industrial battery, lithium upgrade available with 3-phase industrial charger.
- 5,500 load capacity
- 8.0 max lift height
- Electric-powered
1 sizes · all $10,700/unit
MAP-compliant pricing · Net-30 on approval
1. Model selected
2. Configure your 27″ × 48″ PT55L-2748
At a Glance
About This Equipment
PT55L SERIES Medium-to-Heavy Duty Electric Walkie Pallet Jack
The PT55L SERIES delivers 5,500 lb capacity in the same German-drivetrain chassis as the PT45L, adding a larger 24V/350Ah industrial battery for longer shift duty cycles in heavy fulfillment operations.
Standard features

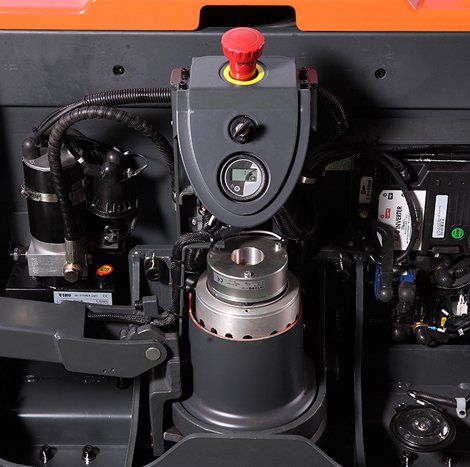

ZAPI Controller with hour-meter discharge indication

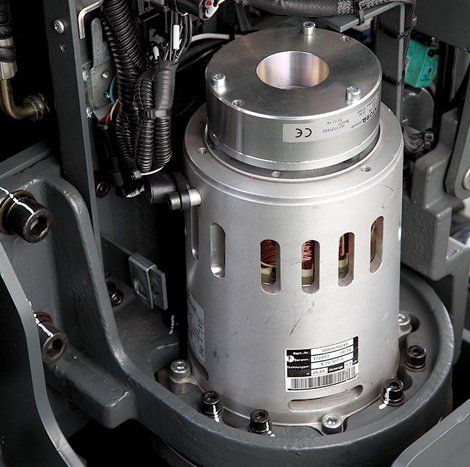

German Schabmueller AC drive motor
German Kordel gearbox
German Intorq magnetic brakes
German Wicke wheels

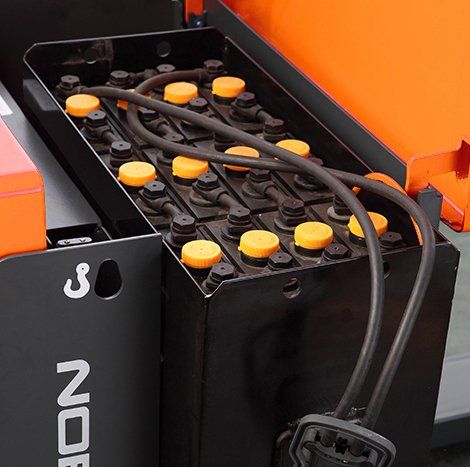

24V/350Ah AGM industrial battery (standard)
24V/30A or 24V/45A 110V charger

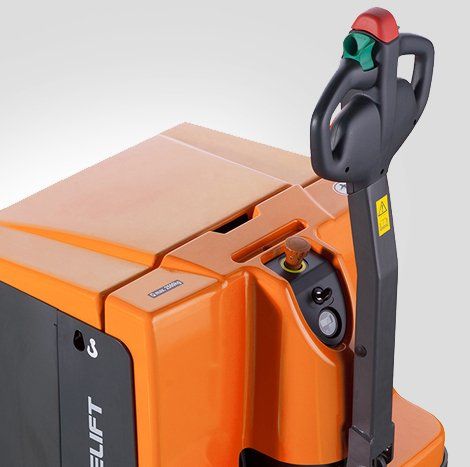

Key switch access
Crawl-speed button for tight-space operation
Dual stability casters
3-year limited warranty
Performance
Metric | Spec |
|---|---|
Capacity | 5,500 lb |
Lift Height | 8.0 in |
Lowered Fork Height | 3.3 in |
Travel Speed (Unloaded) | 3.7 mph |
Travel Speed (Loaded) | 3.5 mph |
Service Weight | 1,210 lb |
Variant
PT55L-2748 — 27″ W × 48″ L forks (standard)
Common upgrades
48″ Tall Load Backrest (+$250)
Alternate Fork Length — 60″ (+$500)
Alternate Fork Width — 21″ × 48″ (+$200)
Battery Upgrade — 24V/200Ah Lithium-Iron LFP (+$1,000) — replaces AGM, includes 24V/100A 208–240V 3-phase charger
3-year limited warranty.
Full Specifications
| Lift Height | 8.0 in |
| Lowered Fork Height | 3.3 in |
| Travel Speed (Unloaded) | 3.7 mph |
| Travel Speed (Loaded) | 3.5 mph |
| Battery (Standard) | 24V/350Ah AGM |
| Charger (Standard) | 24V/30A or 24V/45A 110V |
Shipping
Real-time shipping quote calculated at checkout.
Warranty & Included
PHS Lift handles warranty registration on your behalf — you must submit our online registration form within 10 days of delivery to activate coverage. Full warranty terms →
