PTE45N The Edge 45Lithium - Electric Pallet Truck
The EDGE 45 — heavy-duty 48V lithium walkie pallet jack. 4,500 lb capacity, brushless DC drive motor, fast charging, RFID/pin-code keyless start, 7% gradeability with full load. Available in 21″ × 45″ or 27″ × 45″ fork sizes.
- 4,500 load capacity
- 7.6 max lift height
- 2 configurations available
- In stock — Chicago
2 sizes · all $3,500/unit
MAP-compliant pricing · Net-30 on approval
1. Choose your model
At a Glance
About This Equipment
PTE45N "EDGE" 48V Lithium Electric Pallet Jack
The PTE45N "EDGE" is the 48V upgrade in the EDGE walkie family — engineered for higher-capacity warehouse and 3PL applications where the standard 24V class isn't enough. 4,500 lb capacity, brushless DC drive, and full-day uptime from the integrated 48V/20Ah lithium pack.
Standard features
Curtis travel controller with CAN-bus control
Brushless DC permanent magnetic drive motor for higher gradeability

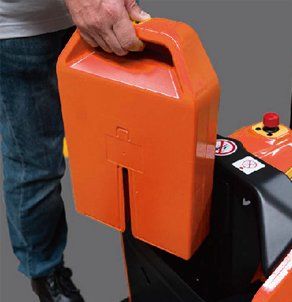

48V/20Ah Lithium battery pack — fast charging
48V/9A 110V built-in charger

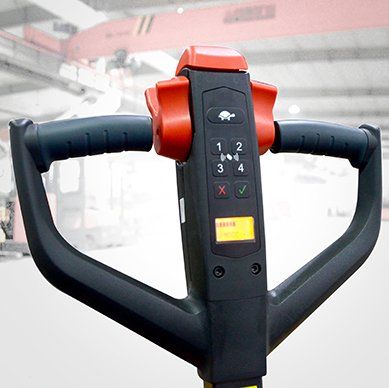

Keyless pin-code panel + RFID cards (multi-operator support)
LCD with battery indicator, hour meter, fault code
Dual butterfly thumb controls with pinwheel capability
7% gradeability loaded · 16% unloaded
Dual stability casters with speed reduction in turns
3-year limited warranty
Performance
Metric | Spec |
|---|---|
Capacity | 4,500 lb |
Lift Height | 7.6 in |
Lowered Fork Height | 3.1 in |
Travel Speed (Unloaded) | 3.0 mph |
Travel Speed (Loaded) | 2.8 mph |
Gradeability (Full Load) | 7% |
Service Weight | 375–395 lb |
Available variants
PTE45N-2145 — 21″ W × 45″ L forks, 375 lb service weight
PTE45N-2745 — 27″ W × 45″ L forks, 395 lb service weight
Common upgrades
Extra (Spare) 48V/20Ah Lithium Battery (+$700)
Extra (Spare) 48V/9A Charger (+$200)
Traction Tire Upgrade (+$225)
Reefer Casters (+$200)
Load Backrest — 42″ (+$200) · 48″ (+$250) · 60″ (+$300)
3-year limited warranty.
Full Specifications
| Lift Height | 7.6 in |
| Lowered Fork Height | 3.1 in |
| Travel Speed (Unloaded) | 3.0 mph |
| Travel Speed (Loaded) | 2.8 mph |
| Gradeability (Loaded) | 7 % |
| Gradeability (Unloaded) | 16 % |
| Battery (Standard) | 48V/20Ah Lithium |
| Charger (Standard) | 48V/9A 110V built-in |
Shipping
Real-time shipping quote calculated at checkout.
Warranty & Included
PHS Lift handles warranty registration on your behalf — you must submit our online registration form within 10 days of delivery to activate coverage. Full warranty terms →
