PTE33N The Edge 33Lithium - Electric Pallet Truck
The EDGE 33 — Curtis-controlled lithium walkie pallet jack with 3,300 lb capacity, 24V/20Ah battery, fast charging, and a compact turning radius. Pin-code keyless start, dual stability casters, integrated charger. Available in 21″ × 45″ or 27″ × 45″ fork sizes.
- 3,300 load capacity
- 7.6 max lift height
- 2 configurations available
- In stock — Mass
2 configurations · pricing varies by size
MAP-compliant pricing · Net-30 on approval
1. Choose your model
At a Glance
About This Equipment
PTE33N "EDGE" Lithium-Powered Electric Pallet Jack
The PTE33N "EDGE" is a compact, lithium-powered walkie pallet jack engineered for tight aisles, retail back-rooms, and light-warehouse work. With a 3,300 lb capacity and integrated 24V/20Ah lithium battery pack, it delivers full-shift performance in a chassis that turns inside the footprint of a typical pallet.
Standard features
Curtis travel controller with CAN-bus control for smooth ramping
24V/20Ah Lithium battery pack — fast charging
24V/8A 110V built-in charger (no external charger required)
DC permanent magnetic drive motor
Compact design and turning radius for narrow aisles

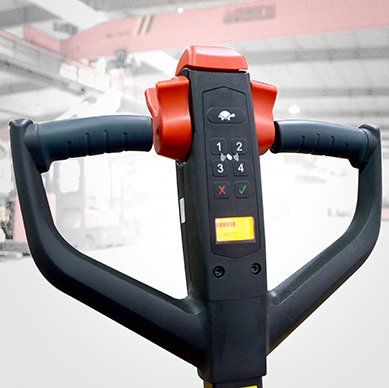

Keyless pin-code panel for operator access control
LCD display with battery indicator, hour meter, and fault code indicator
Dual butterfly thumb controls for travel
Pinwheel capability — drive with the tiller in vertical position
Dual stability casters and speed reduction in turns
3-year limited warranty
Performance
Metric | Spec |
|---|---|
Capacity | 3,300 lb |
Lift Height | 7.6 in |
Lowered Fork Height | 3.1 in |
Travel Speed (Unloaded) | 3.0 mph |
Travel Speed (Loaded) | 2.8 mph |
Service Weight | 310–330 lb |
Available variants
PTE33N-2145 — 21″ W × 45″ L forks, 310 lb service weight
PTE33N-2745 — 27″ W × 45″ L forks, 330 lb service weight
Common upgrades
Extra (Spare) 24V/20Ah Lithium Battery (+$600) — keep one charging while the other works
Extra (Spare) 24V/8A Charger (+$200)
Traction Tire Upgrade (+$225) — improved grip on smooth concrete
Reefer Casters (+$200) — cold-storage rated
Load Backrest — 42″ (+$200) · 48″ (+$250) · 60″ (+$300)
3-year limited warranty.
Full Specifications
| Lift Height | 7.6 in |
| Lowered Fork Height | 3.1 in |
| Travel Speed (Unloaded) | 3.0 mph |
| Travel Speed (Loaded) | 2.8 mph |
| Battery (Standard) | 24V/20Ah Lithium |
| Charger (Standard) | 24V/8A 110V built-in |
Shipping
Real-time shipping quote calculated at checkout.
Warranty & Included
PHS Lift handles warranty registration on your behalf — you must submit our online registration form within 10 days of delivery to activate coverage. Full warranty terms →
