PT60-80R Rider Electric Pallet Truck

PT60-80R — Long Description

Overview

The PT60-80R is a heavy-duty center-controlled rider electric pallet truck built for high-throughput warehouse and distribution operations. Available in two capacity classes—6,000 lb (PT60R) and 8,000 lb (PT80R)—this rider pallet truck combines German-engineered drivetrain components with a robust U.S. battery compartment to deliver reliable performance across multi-shift, long-aisle dock-to-stock applications.

Model Variants

• PT60R-2748 — 6,000 lb capacity, 27″ × 48″ forks, 2,380 lb service weight

• PT80R-2896 — 8,000 lb capacity, 28″ × 96″ forks, 2,520 lb service weight

Both variants share the same 9.15″ fork lift height and 3.25″ lowered fork height (LFH) for compatibility with standard GMA pallets and dock plates.

Key Features

• Capacity: 6,000 lb (PT60R) or 8,000 lb (PT80R) at 24″ load center

• Lift Height: 9.15″ · Lowered Fork Height: 3.25″

• German Schabmueller AC drive motor with sealed gearbox

• Curtis controller for smooth acceleration and regenerative braking

• 24V/350Ah Lead-Acid industrial battery (standard)

• 24V/55A 110V charger included

• Center-controlled rider platform with foldable side rails

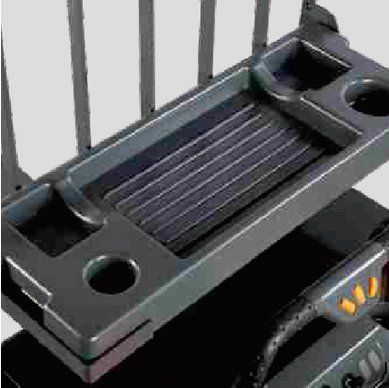

• Standard load backrest, tool tray, dual stability casters

• 9.1″ × 2.8″ drive tire and 3.9″ × 3.3″ load wheels

• Travel speeds: PT60R — 8.7 mph unloaded / 6.2 mph loaded; PT80R — 7.5 mph unloaded / 5.9 mph loaded

Battery & Charging

The PT60-80R ships standard with a 24V/350Ah lead-acid industrial battery sourced from U.S. Battery, paired with a 24V/55A 110V on-board charger. For high-cycle operations, two lithium upgrades are available: a 200Ah Lithium-Iron LFP pack (+$1,100) and a 300Ah Lithium-Iron LFP pack (+$1,900), both including a 24V/100A 3-phase industrial charger. Lithium options eliminate watering, reduce charging time, and extend usable runtime per shift.

Drivetrain & Performance

• Schabmueller AC traction motor (Germany) for high-torque, low-maintenance operation

• Sealed gearbox with lifetime lubrication—no oil changes required

• Curtis controller delivers programmable acceleration curves, regenerative braking, and energy recovery on deceleration

• Travel speed: up to 8.7 mph unloaded (PT60R), 7.5 mph unloaded (PT80R)

• Gradeability: suitable for ramps and dock approaches

• Optional Power Steering (+$500) reduces operator fatigue on long shifts and tight aisles

Operator Platform & Safety

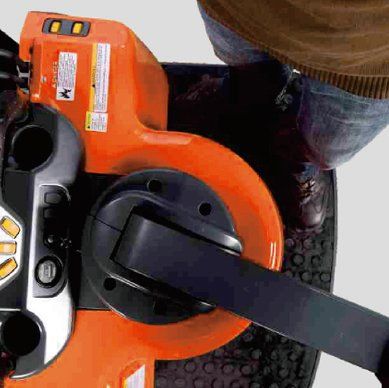

• Center-controlled rider platform with cushioned operator deck

• Foldable side rails for stability during travel

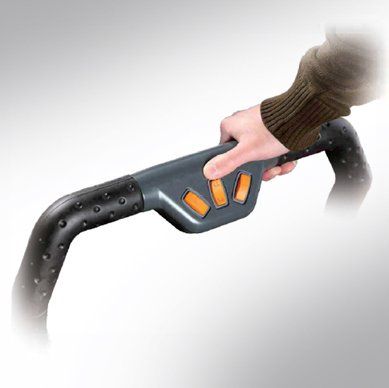

• Tiller-mounted controls with horn, lift/lower, travel direction, and emergency reverse

• Emergency stop button on the dash

• Key switch limits access to authorized operators

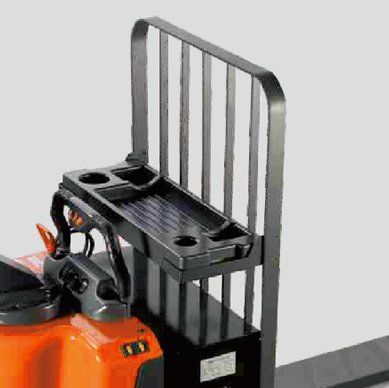

• Standard load backrest prevents load tip-back during transport

• Dual stability casters improve cornering stability under load

• PT80R-only: Optional side-coast and brake buttons (+$600) for left/right-hand operator preference

Build Quality

• U.S. Battery compartment with secure latch and ventilation

• Powder-coated steel frame with impact-resistant bumpers

• Wicke polyurethane wheels (Germany) resist chunking, flat-spotting, and floor marking

• Class III fork tips (PT60R 27″ × 48″ / PT80R 28″ × 96″)

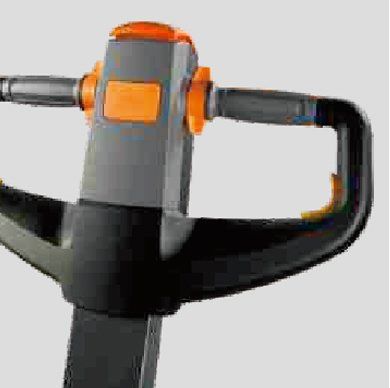

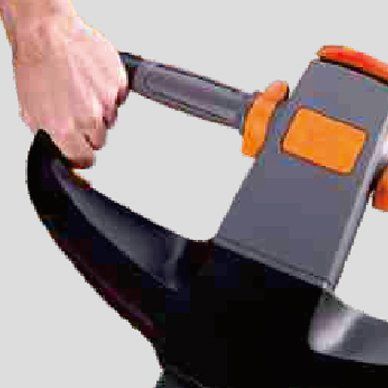

• Ergonomic tiller with backlit display showing battery state-of-charge, hour meter, and fault codes

Optional Upgrades

OptionPT60RPT80RAlternate Fork Length (3 sizes)+$300 / +$400 / +$500—Side-Coast & Brake Buttons—+$600Power Steering+$500+$500200Ah Lithium-Iron Battery Upgrade+$1,100+$1,100300Ah Lithium-Iron Battery Upgrade+$1,900+$1,900Freezer Application PackageRequest — pricing on quoteRequest — pricing on quote

Freezer Application Package

The optional Freezer Application Package prepares the unit for sustained operation in sub-zero environments (down to -4°F / -20°C). It includes battery heating, cold-rated hydraulic fluid, sealed electrical connections, and corrosion-resistant components. Pricing is quoted per application based on duty cycle and ambient conditions—contact PHS Lift for a custom quote.

Warranty & Support

Backed by a 36-month bumper-to-bumper warranty covering parts and labor on the drivetrain, electrical system, and structural components. Lithium battery upgrades carry a separate manufacturer warranty (typically 5 years / 3,000 cycles). Extended service plans, on-site training, and nationwide field support are available through PHS Lift's dealer network.
