NR810 Industrial Ride-On Electric Scrubber

The NR810 is an industrial ride-on electric scrubber built for large facilities, distribution centers, and high-traffic commercial floors. It delivers up to 60,000 ft²/h (5,200 m²/h) of cleaning productivity with a 41.7" scrubbing width and 31.9" washing width.

Cleaning Performance

• Scrubbing width 41.7 in (1060 mm)

• Washing width 31.9 in (810 mm)

• Cleaning productivity 60,000 ft²/h (5,200 m²/h)

• Brush motor 0.5 HP × 2 (380W × 2)

• Vacuum motor 0.8 HP (600W)

• Drive motor 0.87 HP (650W)

Tanks & Productivity

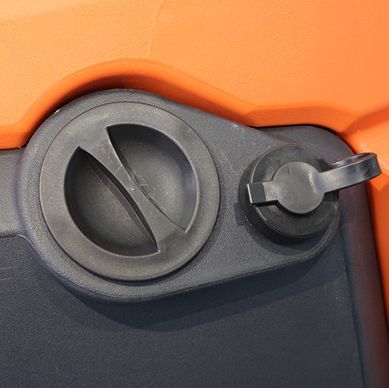

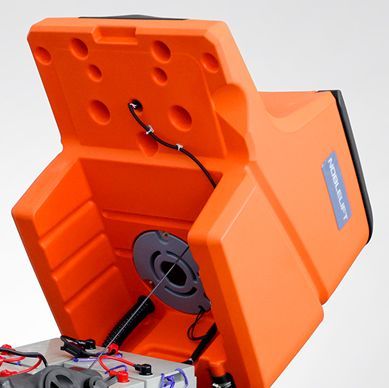

32 gal (120 L) solution tank and 32 gal (120 L) recovery tank support long cleaning cycles between refills. A large tank opening with a detachable top cover makes routine cleaning and maintenance straightforward.

Controls & Features

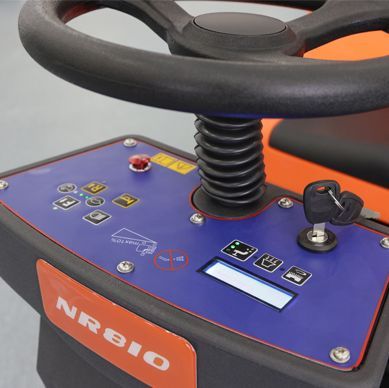

• Integrated waterproof touch panel with LCD display

• Reliable, simple multi-touch control panel

• Adjustable brush-to-ground pressure

• Optional three-speed modes and adjustable water flow

• One-button electric lift/lowering of brush and squeegee holder

• Compact and modular patented design with small turning radius

• Aluminum die-cast brush cover and squeegee

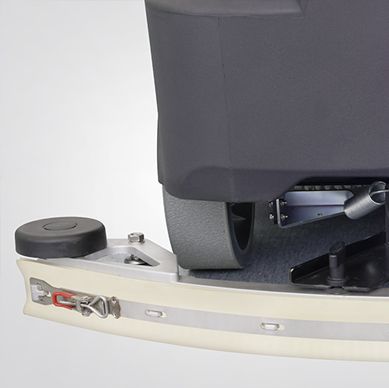

• Standard nylon brush and rubber squeegee

Safety

• Automatic stop when driver leaves the seat (safety sensor)

• Efficient defoaming system

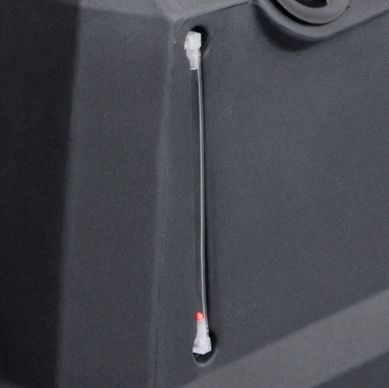

• Solution-tank water-level alarm

Battery & Charger

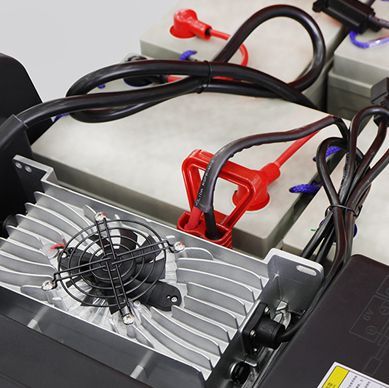

Standard: 4 × 6V / 200Ah maintenance-free battery with a 24V/25A 110V single-phase on-board charger. Optional: Lithium LFP battery + industrial charger upgrade for +$1,500 - faster charging, longer cycle life, and reduced maintenance for multi-shift cleaning operations.

Comparison with NB530 / NR530

• Scrubbing width: NR810 41.7" vs NR530 21" - ~2× wider per pass

• Tanks: NR810 32 / 32 gal vs NR530 18.5 / 18.5 gal - ~73% more capacity

• Battery: NR810 4×6V/200Ah vs NR530 2×12V/120Ah - higher amp-hours

• Brush motors: NR810 dual 0.5 HP vs NR530 single 0.74 HP

• Lithium upgrade: NR810 +$1,500 vs NR530 +$1,000

• MSRP: NR810 $7,000 vs NR530 $4,400

Warranty & Support

3-Year Limited Warranty on chassis, brush motor, vacuum motor, drive motor, and electrical. PHS Lift dealer network provides nationwide service, parts, and operator training.
