SC Series Self-Propelled Electric Scissor Lifts (SC1328E - SC3945E)

Overview

The SC Series Self-Propelled Electric Scissor Lifts are Noblelift proven aerial work platforms in six heights from 13' to 39' platform / 19' to 45' working height. Dual front-wheel drive, drive at full height, proportional lift and drive, ANSI A92.20 compliance. 3-Year Limited Warranty.

Six Models — From Retail Maintenance to High-Rise Industrial

• SC1328E - 13' platform / 19' working height, 528 lb, $12,400

• SC1930EC - 19.7' platform / 26' working height, 506 lb, $17,050

• SC2632EN - 26.2' platform / 32' working height, 500 lb, 32" narrow, $24,100

• SC2645E - 26.2' platform / 32' working height, 600 lb, 45" wide, $25,600

• SC3345E - 32.8' platform / 39' working height, 700 lb, 45" wide, $28,800

• SC3945E - 39.3' platform / 45' working height, 700 lb, 45" wide, $29,600 (tallest in SC Series)

SC3345E / SC3945E Naming Convention

SC = Self-propelled scissor lift. 33/39 = platform height in feet. 45 = platform width in inches. E = Electric drive. Both share an 89" × 44" steel platform on a 45" wide chassis with 700 lb capacity, but the SC3945E adds 6.5 feet of additional platform travel for high-bay industrial work and exterior building maintenance.

SC3345E — 33-Foot Platform / 45" Wide

• Platform Height: 32.8 ft (10m)

• Working Height: 39 ft (12m)

• Platform: 89" × 44" (2.27m × 1.12m)

• Lift Capacity: 700 lb (320 kg)

• Ship Weight: 6,700 lb

• Lithium Upgrade: +$4,000

SC3945E — 39-Foot Platform / 45" Wide (Tallest in SC Series)

• Platform Height: 39.3 ft (12m)

• Working Height: 45 ft (14m)

• Platform: 89" × 44" (2.27m × 1.12m)

• Lift Capacity: 700 lb (320 kg)

• Ship Weight: 6,800 lb

• Lithium Upgrade: +$4,800 (premium tier)

SC3345E / SC3945E Standard Configuration

• Battery: 4 × 6V / 232/280Ah US Batteries (24V system)

• Charger: Universal Built-in 24V / 30A 110V Smart

• AC Power to Platform standard

• Airline to Platform standard

Drive & Performance (All Models)

• Dual Front Wheel Drive

• Drive at Full Height

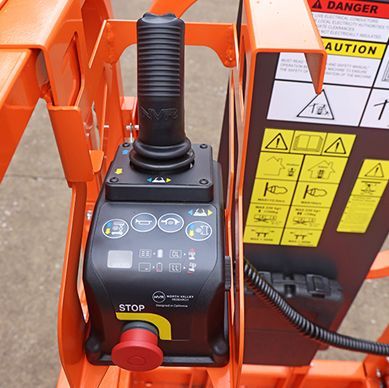

• Proportional Lift and Drive

• 25% Gradeability

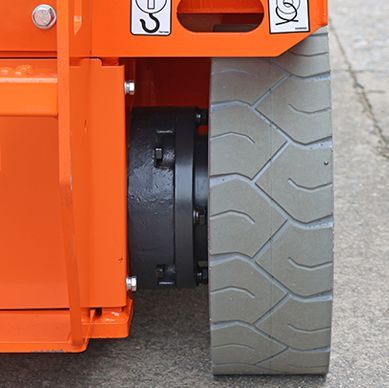

• Front Wheel Hydraulic Dynamic Braking

• Solid Non-Marking Tires

Safety — ANSI A92.20 Compliant

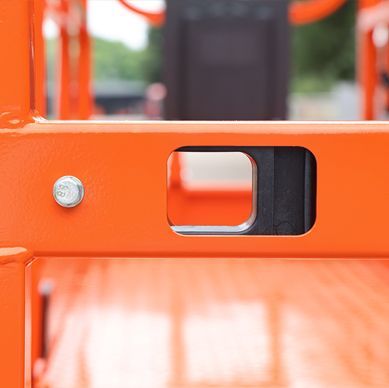

• Folding Rails with Half-Height Swing Gate (CE)

• Lanyard Attachment Points

• Manual Platform Lowering Valve

• Emergency Stop at platform + ground controls

• Tilt Level Sensor with audible alarm

• Descent Alarm + Motion Alarm + Electronic Horn

• Overload Sensor

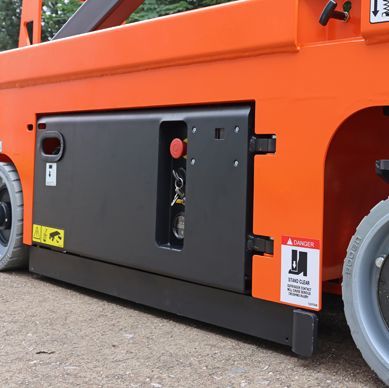

• Pothole Guards - auto-deploy when elevated

• Dual Flashing Beacons

Easy Maintenance

• On-Board Diagnostic System

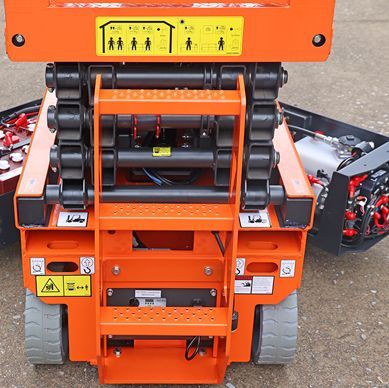

• Swing-Out Component Trays

• Solid Non-Marking Tires

• Universal Smart Charger

Warranty & Support

3-Year Limited Warranty on chassis, drivetrain and electrical. Extended service plans, ANSI A92.24-compliant operator training, and nationwide field support available through PHS Lift dealer network.
